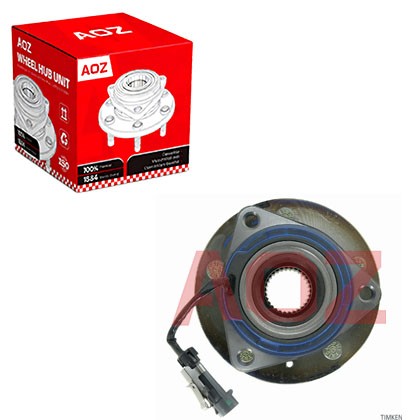

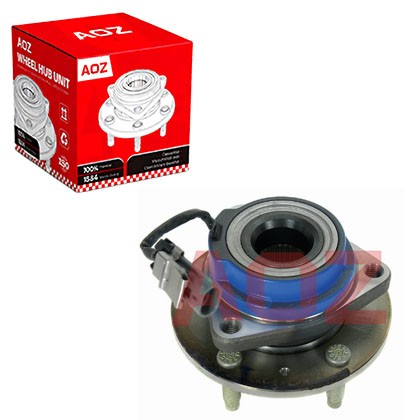

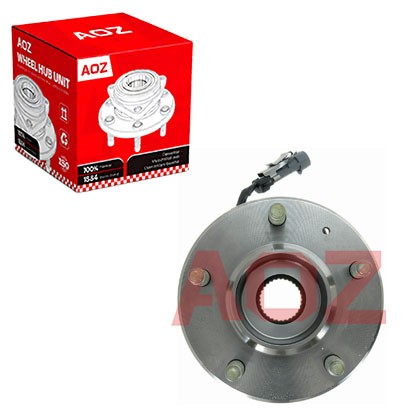

Wheel-hub-bearing-unit-for-GM-USA-512223

Wheel-hub-bearing-unit-for-GM-USA-512223

Fit Vehicles/Application:GM-USA-Cadillac: CTS, STS

AOZ NO:L-409

OE Numbers:512223

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Cadillac: CTS, STS

AOZ NO:L-409

OE Numbers:512223

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-512223

Fit Vehicles
Cadillac
CTS	2002-2019
STS	2005-2011

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Why does my hub bearing make a humming noise that gets louder on the highway?

A: Highway speeds increase the rotational frequency of the bearing. If the raceway or rollers have wear patterns, the vibration frequency rises with speed, making the hum more noticeable at higher velocities.

Q2: Why does my new hub have a small plastic bag attached to the ABS wire?

A: The bag keeps the wire and connector clean and protected from dust during storage and shipping. Remove it before installation and route the wire along the factory path.

Q3: Can a hub bearing failure cause my vehicle to pull to one side during braking?

A: Yes. Excessive play in the bearing can cause slight wheel misalignment under braking load, pulling the vehicle toward the side with the worn bearing.

Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
