Fit Vehicles/Application:GM-USA-Chevrolet: HHr 06-07, Malibu 04-07,Pontiac: G6 05-07
AOZ NO:L-077
OE Numbers:512287
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles/Application:GM-USA-Chevrolet: HHr 06-07, Malibu 04-07,Pontiac: G6 05-07
AOZ NO:L-077
OE Numbers:512287
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GM-USA-512287 | |
Fit Vehicles | |
Chevrolet | |
HHr | 2006-2011 |
Malibu | 2004-2008 |
Pontiac | |
G6 | 2005-2010 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

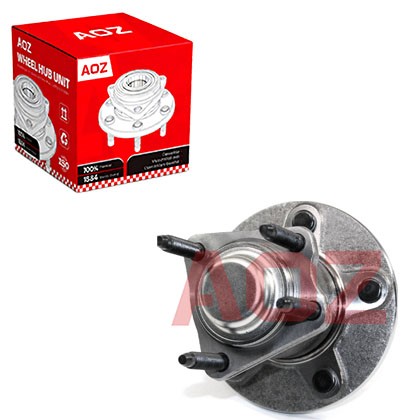

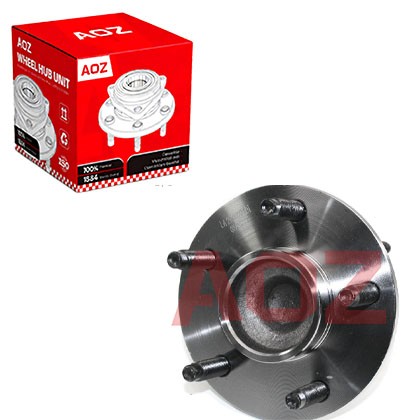

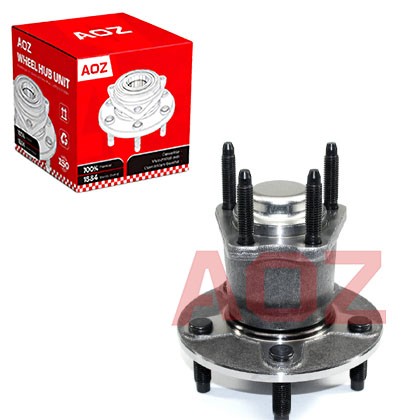

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: What causes a hub bearing to make a clunking sound only on initial acceleration from a stop?
A: This indicates excessive internal clearance. When torque is first applied, the drivetrain components shift suddenly within the worn bearing, creating a single clunk before settling into normal rotation.
Q2: Why does my new hub have a small plastic cover over the bolt holes?
A: This cover protects the threaded bolt holes from corrosion and debris during storage and shipping. Remove it before beginning installation to ensure the bolts thread in smoothly.
Q3: Can I clean a hub bearing with brake cleaner to remove shipping grease?
A: No. Brake cleaner can penetrate the bearing seals and dissolve the internal factory grease, leading to premature failure. Only clean the exterior mounting surfaces, and keep all solvents away from the bearing seals.
Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
