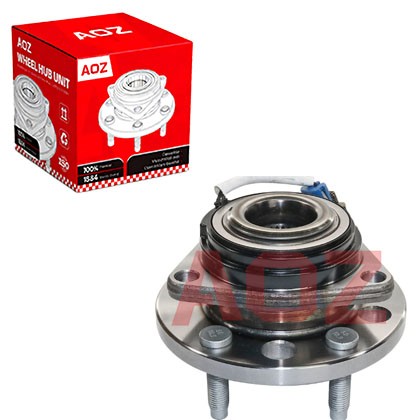

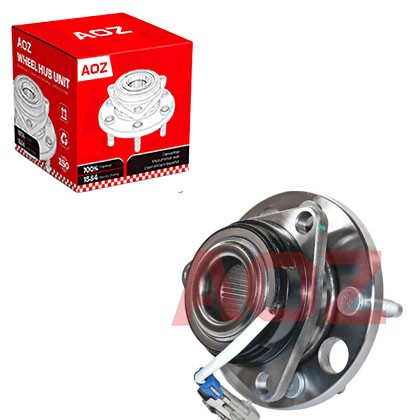

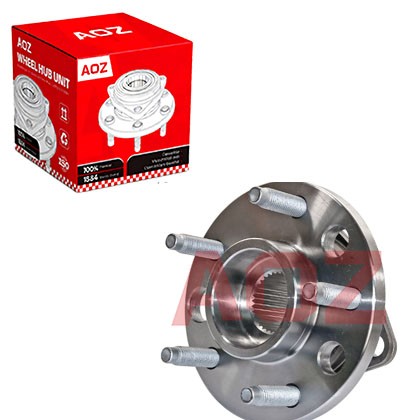

Wheel-hub-bearing-unit-for-GM-USA-513087

Wheel-hub-bearing-unit-for-GM-USA-513087

Fit Vehicles/Application:GM-USA-Chevrolet Lumina,Pontiac Bonneville

AOZ NO:L-714

OE Numbers:513087

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Chevrolet Lumina,Pontiac Bonneville

AOZ NO:L-714

OE Numbers:513087

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-513087

Fit Vehicles
Chevrolet
Lumina	1989-2001
Pontiac
Bonneville	1957-2005

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%

FAQs

Q1: What does "sealed for life" mean on a hub bearing?

A: It means the bearing is pre-greased at the factory and sealed to prevent contamination. It should never be opened, repacked, or serviced — only replaced as a complete unit.

Q2: Can I use a hammer and punch to remove the old hub from the knuckle?

A: This is not recommended. Hammering can damage the knuckle mounting surface or distort the new hub during installation. Use a proper hub puller or press tool.

Q3: Why does my new hub have a different number of ABS sensor wires than the old one?

A: This indicates a part mismatch. Different vehicles use different sensor configurations. Return the part and verify the correct application for your vehicle.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
