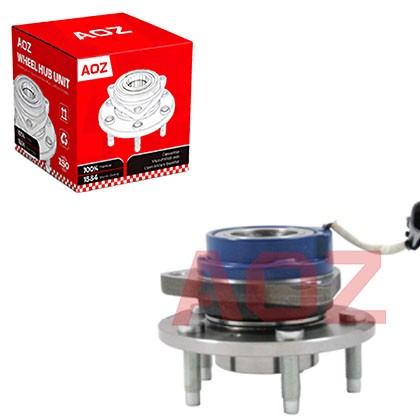

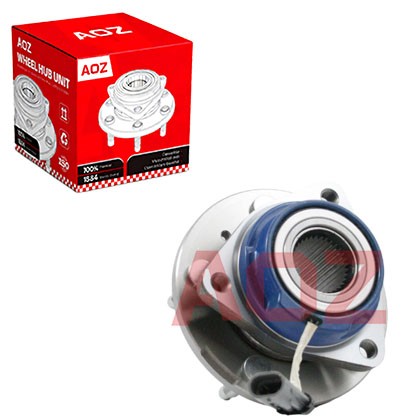

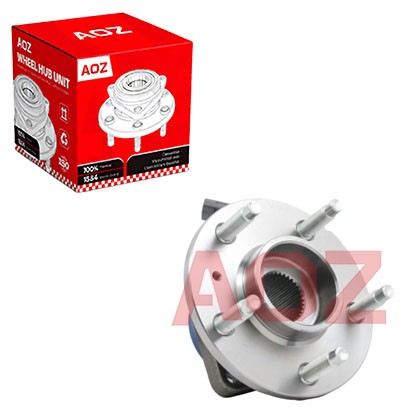

Wheel-hub-bearing-unit-for-GM-USA-513187

Fit Vehicles/Application:GM-USA-BUICK RENDEZVOUS,CHEVROLET VENTURE,OLDSMOBILE SILHOUETTE,PONTIAC AZTEK,MONTANA

AOZ NO:LD130

OE Numbers:513187

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-BUICK RENDEZVOUSCHEVROLET VENTUREOLDSMOBILE SILHOUETTEPONTIAC AZTEKMONTANA

AOZ NO:LD130

OE Numbers:513187

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513187





Fit Vehicles


BUICK


  RENDEZVOUS

2002-2007

CHEVROLET


VENTURE

2002-2004

OLDSMOBILE


SILHOUETTE

2002-2004

PONTIAC


AZTEK

2001-2005

MONTANA

2001-2005

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: Why does my hub bearing make a noise that only appears when I drive over expansion joints?
A: Expansion joints create sudden vertical impacts that momentarily spike the load on the bearing. If the raceway has pitting or spalling, these impact loads can cause the rollers to bounce or chatter, producing a brief clunk or rattle that doesn't occur during smooth driving.


Q2: Why does my new hub have a small plastic cap over the center bore?
A: The cap protects the precision-machined bore surface from scratches, dirt, and corrosion during shipping and storage. Remove it before installing the axle shaft to ensure a proper fit.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like a loose muffler?
A: Yes. A severely worn bearing can produce a low-frequency rumbling or rattling sound that resonates through the chassis, mimicking the sound of a loose exhaust component. Check for bearing play before inspecting the exhaust system.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
