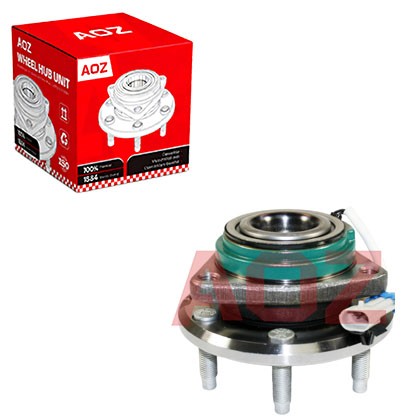

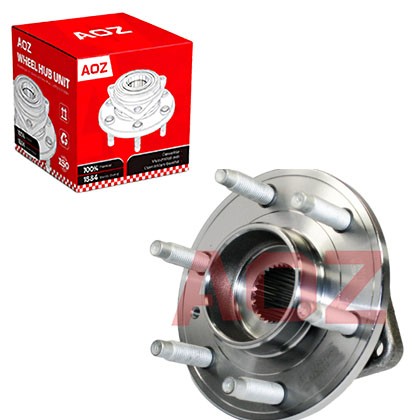

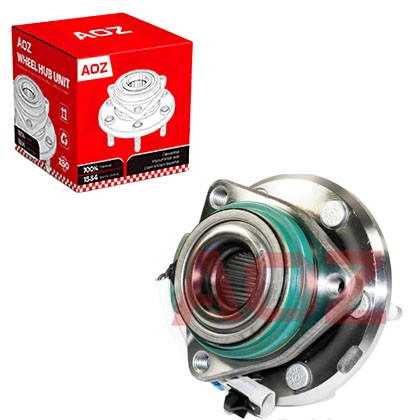

Wheel-hub-bearing-unit-for-GM-USA-513279

Fit Vehicles/Application:GM-USA-CADILLAC STS

AOZ NO:L-942

OE Numbers:513279

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-CADILLAC STS

AOZ NO:L-942

OE Numbers:513279

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513279





Fit Vehicles


CADILLAC


STS

2006-2009

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What causes a hub bearing to make a clicking noise that only appears when reversing out of a driveway?

A: Reversing changes the direction of torque applied to the bearing, shifting the load to the opposite contact surface. If damage exists on the reverse-load side of the raceway, the clicking will only be heard when the vehicle moves backward.


Q2: Why does my new hub have a small metal clip holding the ABS wire to the connector?

A: This clip secures the wire in the correct position during shipping and provides a reference point for proper routing during installation. It can be removed once the wire is routed along the factory path.


Q3: Can a bad hub bearing cause my vehicle to make a vibration that is felt in the brake pedal during highway driving?

A: Yes. A worn bearing allows the hub to wobble slightly at high speeds, which transfers uneven rotation to the brake rotor. This creates a subtle pulsation in the brake pedal even when the brakes are not being applied, caused by the pads lightly contacting the warped rotor surface.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
