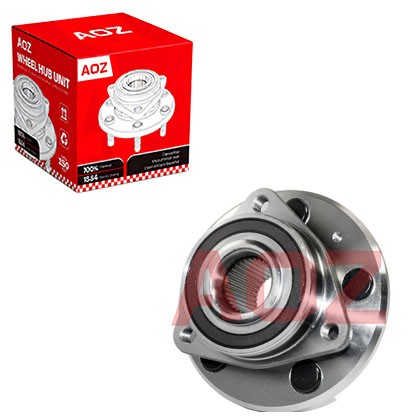

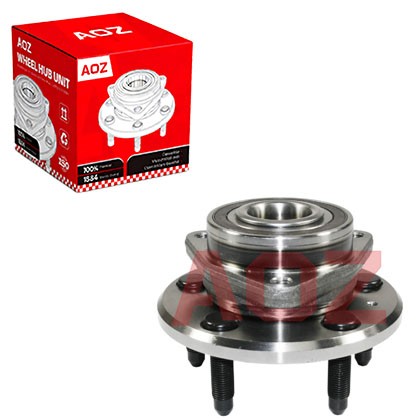

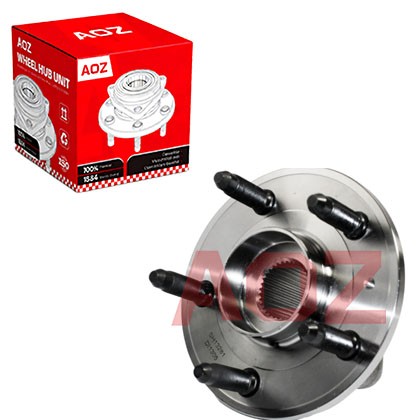

Wheel-hub-bearing-unit-for-GM-USA-513281

Fit Vehicles/Application:GM-USA-Chevrolet: CAMArO,Cadillac CTS

AOZ NO:L-713

OE Numbers:513281

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet: CAMArOCadillac CTS

AOZ NO:L-713

OE Numbers:513281

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513281








Fit Vehicles


Chevrolet


CAMArO

2012-2015

Cadillac


CTS

2009-2015


GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Why does my hub bearing make a noise that only appears when the vehicle is turning left at low speed on a gravel road?

A: Gravel roads create constant small impacts that excite the bearing's internal components. Combined with the lateral load from turning left (which loads the right bearing), any existing damage in the right bearing is amplified, producing a grinding or clicking sound.


Q2: Why does my new hub have a small rubber bumper on the ABS wire clip?

A: The rubber bumper prevents the wire clip from vibrating against the knuckle or suspension components, which could cause wire fatigue or chafing over time. It also reduces noise transmission through the wire.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like a failing wheel bearing on the opposite side?

A: Yes. Vibration and noise can travel through the axle and chassis, making it difficult to pinpoint the exact source. Always inspect both sides and check for play before replacing a bearing to avoid misdiagnosis.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
