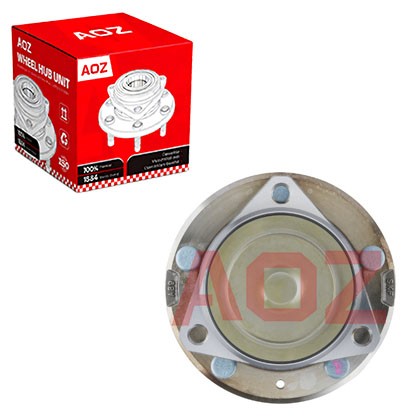

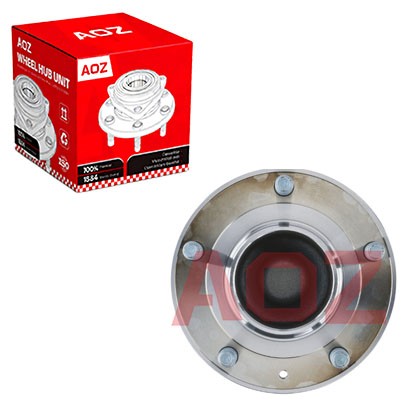

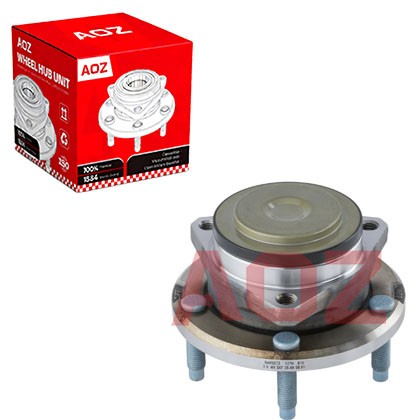

Wheel-hub-bearing-unit-for-GM-USA-513378

Fit Vehicles/Application:GM-USA-Chevrolet Corvette

AOZ NO:L-C12

OE Numbers:513378

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet Corvette

AOZ NO:L-C12

OE Numbers:513378

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513378





Fit Vehicles


Chevrolet


Corvette

2014-2019

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: Why does my hub bearing make a humming noise that gets louder when I drive over 60 mph?

A: At higher speeds, any imperfection in the bearing raceway or roller surface is repeated more frequently, amplifying the harmonic frequency of the damage. This creates a louder humming or droning sound that increases proportionally with vehicle speed.


Q2: Why does my new hub have a small plastic protective film on the mounting flange?

 A: The film protects the machined mounting surface from scratches and corrosion during shipping. Peel it off before installation to ensure the hub seats flat against the knuckle.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like a failing CV joint?

A: Yes. Both can produce clicking or grinding sounds during turns. To differentiate, check whether the noise occurs during straight-line driving (hub bearing) or only during sharp turns (CV joint).

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
