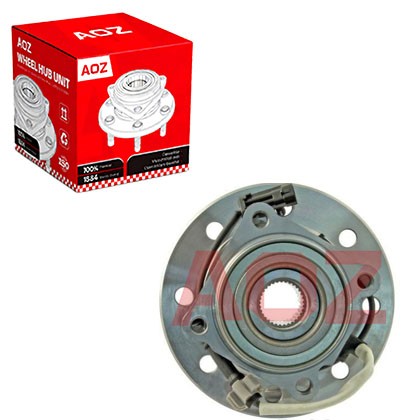

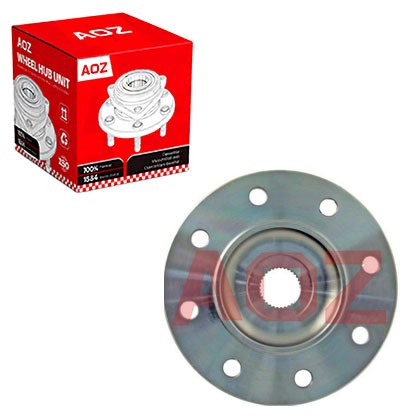

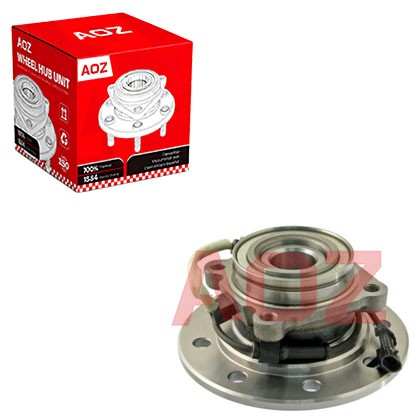

Wheel-hub-bearing-unit-for-GM-USA-515015

Fit Vehicles/Application:GM-USA-Chevrolet K1500/2500,GMC K2500 PICKUP,K2500 SUBUrBAN,K3500

AOZ NO:LD148

OE Numbers:515015

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet K1500/2500,GMC K2500 PICKUP,K2500 SUBUrBAN,K3500

AOZ NO:LD148

OE Numbers:515015

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515015





Fit Vehicles


CHEVROLET


 K1500/2500

1995

GMC


K2500 PICKUP

1995

K2500 SUBUrBAN

1995

K3500

1995

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Why does my hub bearing make a noise that only appears when the vehicle is cold and damp?

A: Moisture can penetrate compromised seals and reach the bearing internals. In cold, damp conditions, water contamination degrades the grease and causes metal-to-metal contact, producing a grinding or squeaking sound that may disappear once the bearing warms up and dries out.


Q2: Why does my new hub have a small plastic guide tab on the ABS connector?

A: The guide tab aligns the connector with the vehicle harness receptacle, ensuring a secure and correct mating. It prevents cross-threading or bent pins that could occur from forced insertion at an incorrect angle.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like a loose heat shield?

A: Yes. A bearing with excessive play can create a metallic rattling or buzzing sound that resonates at certain speeds, closely mimicking the vibration of a loose exhaust heat shield. Inspect the bearing by checking for play before assuming the noise is from the exhaust system.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
