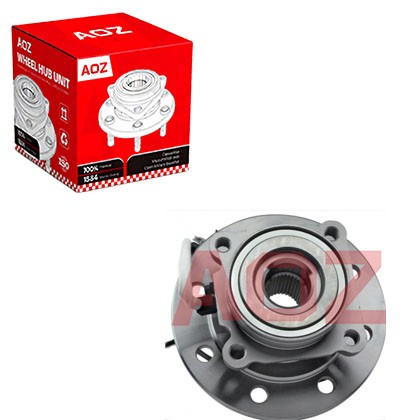

Wheel-hub-bearing-unit-for-GM-USA-515016

Wheel-hub-bearing-unit-for-GM-USA-515016

Fit Vehicles/Application:GM-USA-CHEVROLET K2500 PICKUP,K2500 SUBURBAN,K3500 PICKUP,GMC K2500 PICKUP,K2500 SUBURBAN 1995,K3500 1995

AOZ NO:LD079

OE Numbers:515016

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-CHEVROLET K2500 PICKUP,K2500 SUBURBAN,K3500 PICKUP,GMC K2500 PICKUP,K2500 SUBURBAN 1995,K3500 1995

AOZ NO:LD079

OE Numbers:515016

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-515016

Fit Vehicles
CHEVROLET
K2500 SUBURBAN	1995
K3500 PICKUP	1995
K2500 PICKUP	1995
GMC
K3500	1995
K2500 PICKUP	1995
K2500 SUBURBAN	1995

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can I drive my vehicle if the ABS light is on after hub replacement?

A: The vehicle will drive, but ABS and traction control will be disabled. This reduces braking safety in emergency situations. Diagnose and fix the issue before extended driving.

Q2: What does "hub-centric" mean when buying wheels?

A: Hub-centric wheels have a center bore that matches the hub pilot diameter exactly, ensuring the wheel is centered by the hub rather than the lug nuts. This reduces vibration.

Q3: Can a hub bearing failure cause my vehicle to make a whining noise?

A: Yes. As the bearing deteriorates, the rollers create a whining or whirring sound that increases with vehicle speed. The pitch typically rises as the bearing wears further.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed
