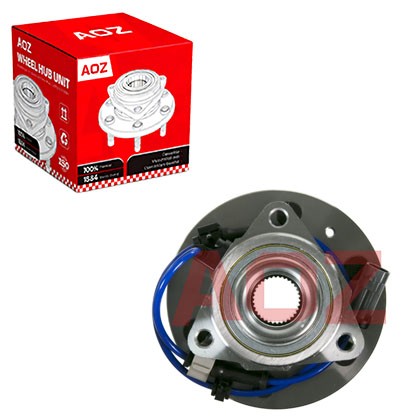

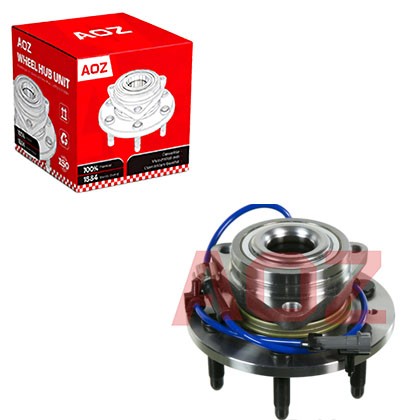

Wheel-hub-bearing-unit-for-GM-USA-515036

Fit Vehicles/Application:GM-USA-CADILLAC ESCALADE,CHEVROLET EXPRESS 1500,EXPRESS 2500,SUBURBAN 1500,TAHOE,GMC SAVANA 1500

AOZ NO:L-035

OE Numbers:515036

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-CADILLAC ESCALADECHEVROLET EXPRESS 1500EXPRESS 2500SUBURBAN 1500TAHOEGMC SAVANA 1500

AOZ NO:L-035

OE Numbers:515036

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515036





Fit Vehicles


CADILLAC


ESCALADE

2002-2006

CHEVROLET


EXPRESS 1500

2003-2013

EXPRESS 2500

2003-2005

SUBURBAN1500

2000-2006

TAHOE

2001-2006

GMC


K1500 PICKUP

1995-1999

SAVANA 1500

2003-2014





GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Why does my hub bearing make a noise that only appears when the vehicle is carrying a heavy load in the trunk?

A: Additional weight in the trunk increases the vertical load on the rear bearings. If the bearing has existing wear, the extra load compresses the internal components more tightly, amplifying friction and noise.


Q2: Why does my new hub have a small rubber grommet where the ABS wire exits the housing?

A: This grommet seals the wire exit point against water, dust, and road salt. It prevents moisture from reaching the internal sensor connection and causing corrosion.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like rocks in a tin can?

 A: Yes. Severely damaged bearings with broken cage fragments or loose rollers can produce a rattling sound similar to objects shaking inside a container. This indicates critical failure requiring immediate replacement.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
