Fit Vehicles/Application:GM-USA-CADILLAC,CHEVROLET,GMC
AOZ NO:L-185
OE Numbers:515054
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles/Application:GM-USA-CADILLAC,CHEVROLET,GMC
AOZ NO:L-185
OE Numbers:515054
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GM-USA-515054 | |
Fit Vehicles | |
CADILLAC | |
ESCALADE | 2002-2006 |
CHEVROLET | |
AVALANCHE 1500 | 2002-2006 |
EXPRESS 1500 | 2003-2013 |
EXPRESS 2500 | 2003-2005 |
SILVERADO 1500 | 1999-2004 |
SUBURBAN 1500 | 2000-2006 |
TAHOE | 2000-2006 |
GMC | |
SAVANA 1500 | 2003-2013 |
SAVANA 2500 | 2003-2005 |
SIERRA 1500 | 1999-2004 |
YUKON | 2000-2006 |
YUKON XL 1500 | 2000-2006 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

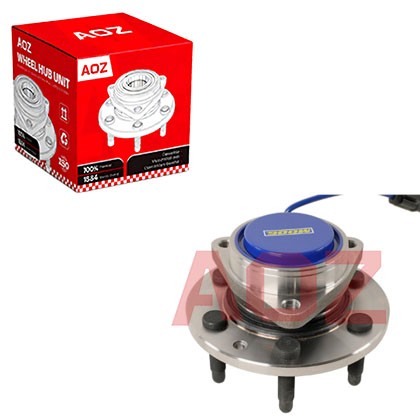

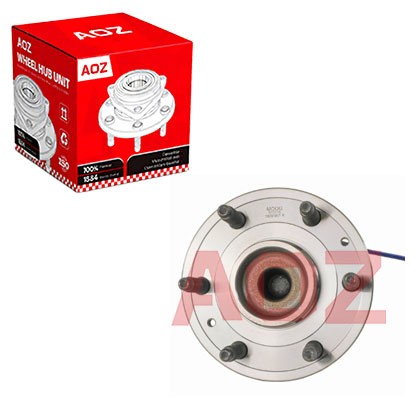

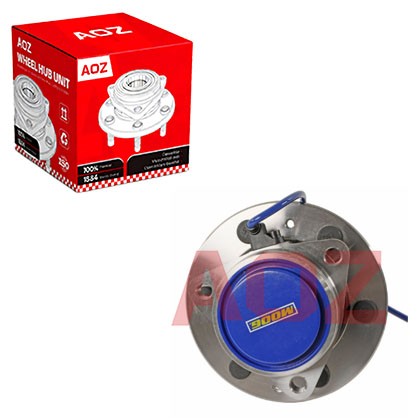

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: Can a hub bearing cause my vehicle to make a clicking noise that speeds up and slows down with vehicle speed?
A: Hub bearings typically produce continuous humming or grinding sounds. A clicking noise that matches wheel speed is more often caused by a damaged CV joint, a stuck brake caliper slide pin, or debris caught in the brake dust shield.
Q2: Why does my new hub have a small rubber boot covering the ABS connector pins?
A: This boot protects the connector pins from corrosion and debris during storage. Remove it before plugging the connector into the vehicle's wiring harness.
Q3: Can I install a hub assembly without a press if my vehicle uses a press-in bearing?
A: No. Press-in style bearings require a hydraulic press or specialized installation tool to seat them evenly. Attempting to hammer them in will damage the bearing and the knuckle.
