Fit Vehicles/Application:GM-USA-Chevrolet Express 3500/4500,GMC Savana 3500/4500
AOZ NO:L-815
OE Numbers:515060
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles/Application:GM-USA-Chevrolet Express 3500/4500,GMC Savana 3500/4500
AOZ NO:L-815
OE Numbers:515060
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
GM-USA-515060 | |
Fit Vehicles | |
Chevrolet | |
Express 3500 | 1996-Present |
Express 4500 | 1996-Present |
GMC | |
Savana 3500 | 1996-Present |
Savana 4500 | 1996-Present |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

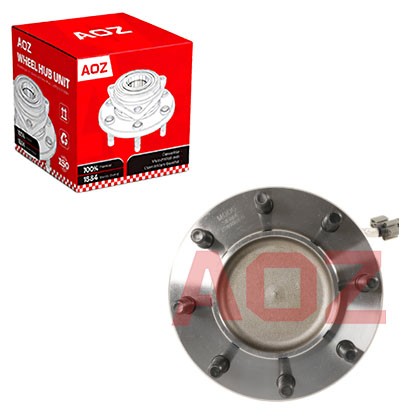

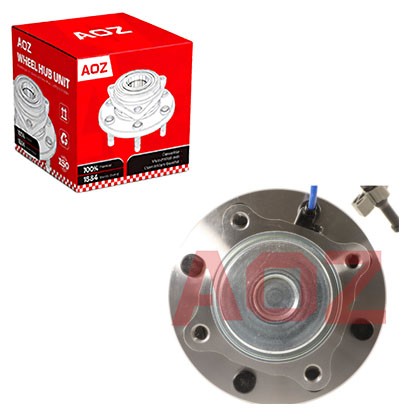

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: Can a failing hub bearing cause my transmission to shift roughly?
A: Yes. Modern transmissions use vehicle speed data from the wheel speed sensors to determine shift points. Erratic signals from a damaged encoder ring can confuse the transmission control module, resulting in harsh or delayed shifts.
Q2: Why does my new hub have a small foam ring around the ABS connector?
A: This foam ring acts as a cushion to prevent the connector from vibrating against the hub housing. It also helps seal the connection against moisture and road debris.
Q3: Can I replace a hub bearing in cold weather?
A: Yes, but cold metal contracts and becomes more brittle. Allow the vehicle to warm up if possible, and be extra careful when handling components to avoid cracking seals or breaking tabs in low temperatures.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
