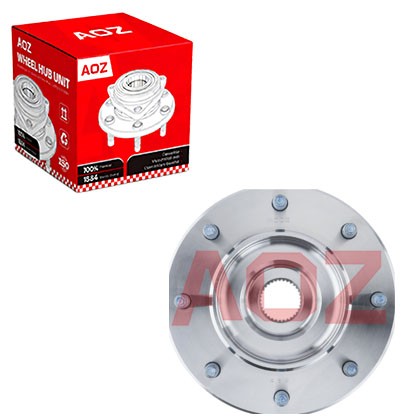

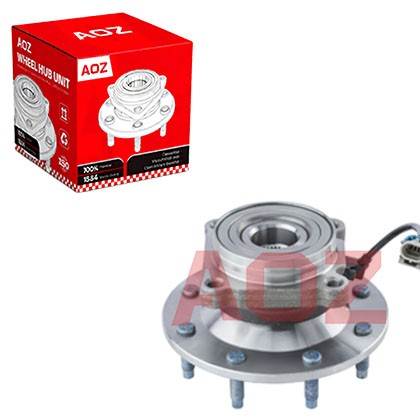

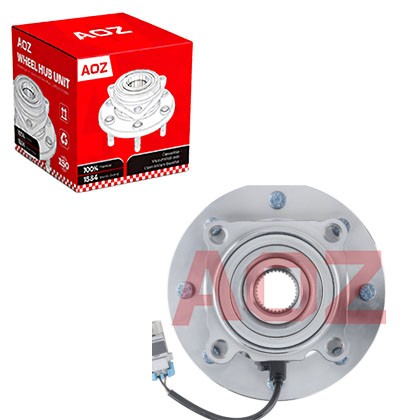

Wheel-hub-bearing-unit-for-GM-USA-515163

Fit Vehicles/Application:GM-USA-Cadillac DTS

AOZ NO:LD161

OE Numbers:515163

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Cadillac DTS

AOZ NO:LD161

OE Numbers:515163

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515163





Fit Vehicles


Cadillac


DTS

2006-2011

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers


















FAQs

Q1: Why does my hub bearing make a noise that only appears when the vehicle is turning right and braking downhill?

A: Turning right shifts weight onto the left bearing, while braking downhill adds axial load and increases vertical load due to weight transfer. The combination of all three loads on a damaged left bearing amplifies the noise significantly.


Q2: Why does my new hub have a small plastic protective cap over the center bore?

A: The cap protects the precision-machined bore surface from scratches, dirt, and corrosion during shipping and storage. Remove it before installing the axle shaft to ensure a proper fit.


Q3: Can a bad hub bearing cause my vehicle to make a vibration that is felt in the glove box?

 A: Yes. Vibrations from a failing bearing can travel through the chassis and body structure, causing the glove box latch or contents to rattle, especially at highway speeds where resonance frequencies align.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
