Fit Vehicles /Application :LEOPAARD-CS10
AOZ NO:L-027
OE Numbers:6655-L002-001,6655L002001
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :LEOPAARD-CS10
AOZ NO:L-027
OE Numbers:6655-L002-001,6655L002001
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
LEOPAARD-6655-L002-001 | |
6655L002001 |
Fit Vehicles | |
LEOPAARD | |
CS10 | 2016-2019 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

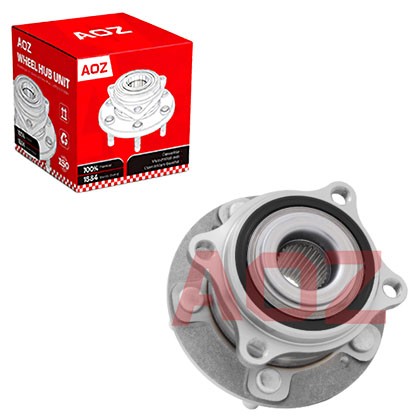

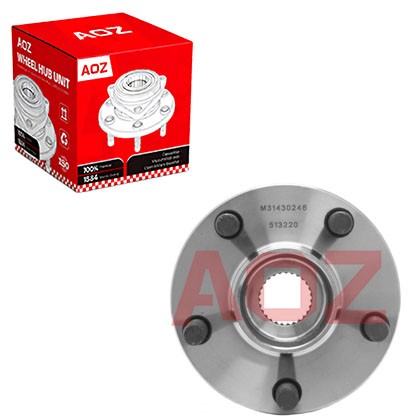

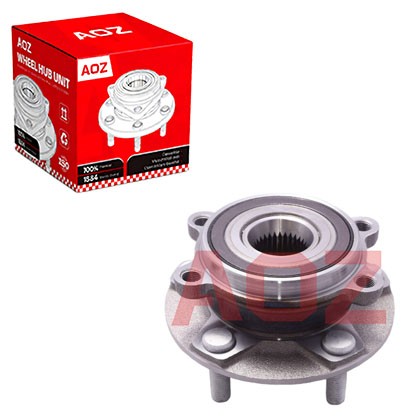

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: What does "LWD" or "RWD" mean in part descriptions?
A: They stand for Left Wheel Drive (Driver Side) and Right Wheel Drive (Passenger Side). Front hubs are often side-specific due to ABS sensor wire routing.
Q2: Can I use anti-seize on the hub mounting surface?
A: Yes, but use it sparingly. A very thin layer prevents future rust, but too much can cause the hub to sit unevenly and create vibration.
Q3: Why is there a gap between the hub and knuckle after tightening?
A: Rust or debris is trapped between the surfaces. This will destroy the new bearing. You must clean both surfaces to bare metal before installing.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
