Fit Vehicles /Application :YEMA-F99/F10/F12/Q2
AOZ NO:L-028
OE Numbers:40203-0Q00002
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :YEMA-F99/F10/F12/Q2
AOZ NO:L-028
OE Numbers:40203-0Q00002
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
YEMA-40203-0Q00002 | |
Fit Vehicles | |
YEMA | |
F99 | 2009-2012 |
F10 | 2011-2012 |
F12 | 2012-2014 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

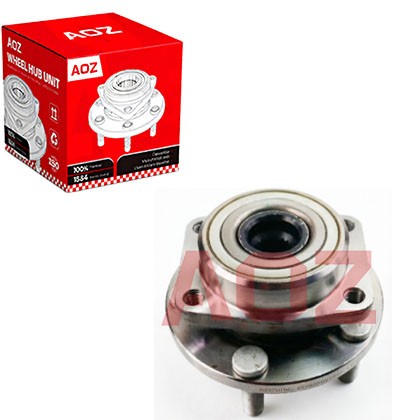

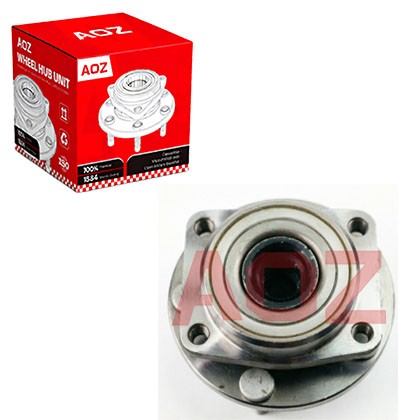

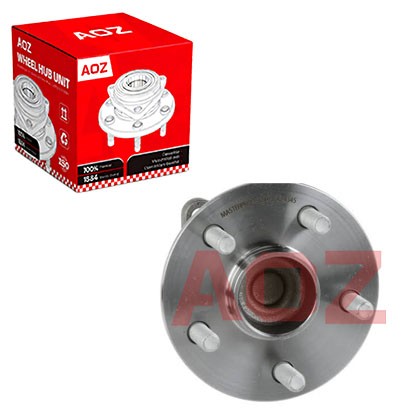

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can water damage a sealed hub?
A: Yes. Deep water or high-pressure washing can force moisture past the seals, washing out the grease and causing internal rust.
Q2: Why does the ABS light turn on after a new installation?
A: The hub is likely installed backwards, or the sensor wire was pinched during installation. The sensor cannot read the magnetic ring.
Q3: Is it safe to drive with a loose axle nut?
A: Absolutely not. A loose nut allows the wheel to wobble, which will rapidly destroy the new bearing and could cause the wheel to detach.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
