Fit Vehicles /Application Chery Tiggo 5
AOZ NO：LD604
OE Numbers:B12-3001015,DACF3012082
Cross Reference Numbers: IX-01385, DSLK-3062, WBH-CH050
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application Chery Tiggo 5
AOZ NO：LD604
OE Numbers:B12-3001015,DACF3012082
Cross Reference Numbers: IX-01385, DSLK-3062, WBH-CH050
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER： | Cross Reference code |
CHERY — B12-3001015 | AIX PARTS: IX-01385 |
CHERY （DACF）3012082 | DI-SOLIK: DSLK-3062 |
WBH: WBH-CH050 | |
OPTIMAL: 961830 | |
METZGER: WM 2262 | |
MOOG: CH-WB-12030 |
Fit Vehicles | |
CHERY | |
Tiggo 3 | 2014–2022 |
Tiggo X3 | 2016–2023 |
JETOUR X30 | 2018–2021 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

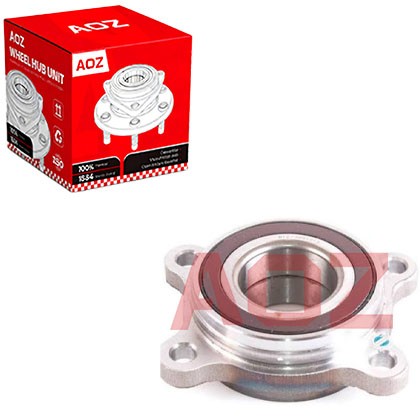

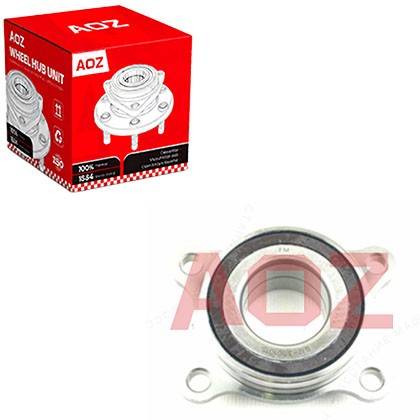

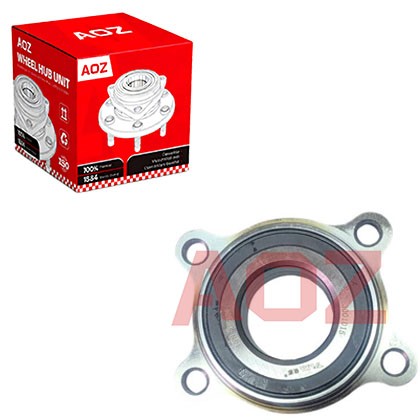

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Are your hub bearings pre-greased before delivery?
A: All hub assemblies are fully pre-greased with high-temperature resistant grease, no need to add oil during installation.
Q2: Do you test high-speed rotation performance for each batch?
A: Every production batch passes high-speed rotation test to ensure no overheating and no deviation.
Q3: Can your products fit original car installation position perfectly?
A: 100% OEM standard size, completely consistent with original mounting holes, no modification needed.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
