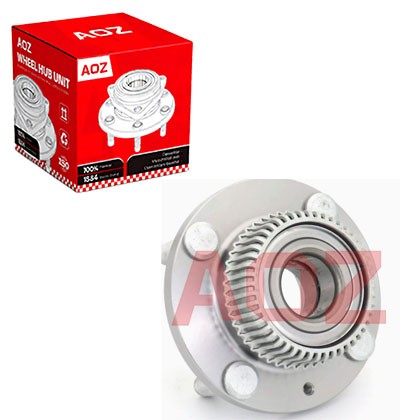

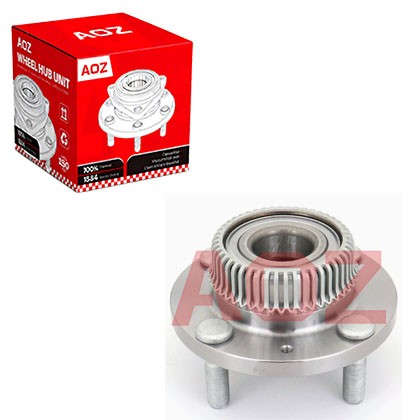

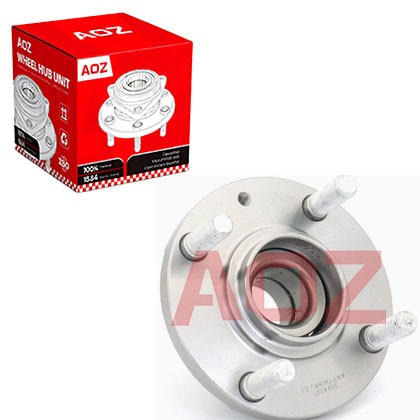

Fit Vehicles /Application :BYD F3 Rear Wheel Hub Bearing (Lower Standard / Drum Brake)
AOZ NO:LD700
OE Numbers:F3-3104121-C1, F3D-3104100, DAC42820042, SL931038
Cross Reference Numbers:VKBA7222, R17682, 9219232K, 713611505
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :BYD F3 Rear Wheel Hub Bearing (Lower Standard / Drum Brake)
AOZ NO:LD700
OE Numbers:F3-3104121-C1, F3D-3104100, DAC42820042, SL931038
Cross Reference Numbers:VKBA7222, R17682, 9219232K, 713611505
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
BYD---F3-3104121-C1 | SKF:VKBA7222 |
F3D-3104100 | SNR:R17682 |
DAC42820042 | GSP:9219232K |
BYD-F3-LOW-REAR-DRUM | NTN:WBK17130 |
DWH01352 | FAG:713611505 |
BYD-F3-3104121-C1 | FEBI BILSTEIN:173007 |
DAC42820042 | MOOG:SA-WB-12312 |
W4282 | OPTIMAL:964512 |
Fit Vehicles | |
BYD | |
F3 Rear Wheel (Lower Standard Drum Brake) | 2005–2016 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |
Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: What is your monthly production capacity?
A: Our automated assembly lines have a monthly capacity of over [Insert Number] units, allowing us to handle both large and urgent orders efficiently.
Q2: What is the lead time for standard in-stock items?
A: For popular models in our safety stock, we can typically ship within 3 to 7 days after payment confirmation.
Q3: How long does it take to develop a new mold?
A: New mold development and sample validation usually take 30 to 45 days, depending on the complexity of the hub design.
