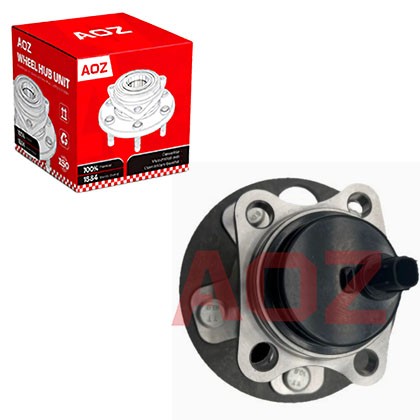

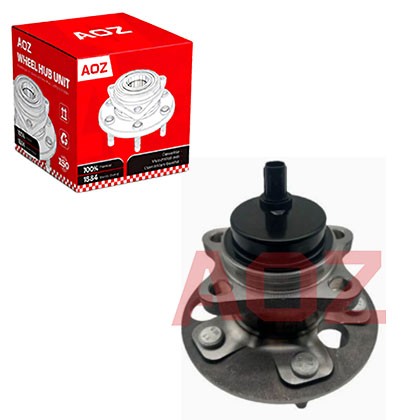

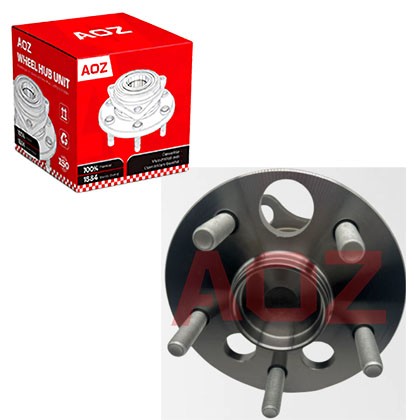

wheel hub bearing unit forBYD-HA-3104100\DAC46840044ABS\SL931254

Fit Vehicles /Application : BYD QIN HEV

AOZ NO:LD1480

OE Numbers:HA-3104100

Cross Reference Numbers:DAC46840044ABS, SL931254

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
BYD---HA-3104100	A.B.S.: 201607
DAC46840044ABS	SKF: VKBA7402
SL931254	GSP: 9219376K
	SNR: R17826
	FAG: 713611649
	FEBI BILSTEIN: 173151

Fit Vehicles
BYD
QIN HEV	2014–2019
E5	2016–2020

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What is the advantage of your orbital riveting process?

A: Orbital riveting permanently locks the hub to the axle through plastic deformation, eliminating the risk of loosening and significantly reducing overall weight compared to traditional nuts.

Q2:How do you ensure the flange can handle high stress?

A: The flange is forged from high-strength carbon steel and undergoes precise heat treatment, ensuring stress is evenly distributed while keeping the weight low.

Q3: What makes your bearing steel superior?

A: We use ultra-high purity bearing steel (e.g., GCr15) with extremely low oxygen content, which maximizes fatigue resistance and prevents premature internal spalling.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
