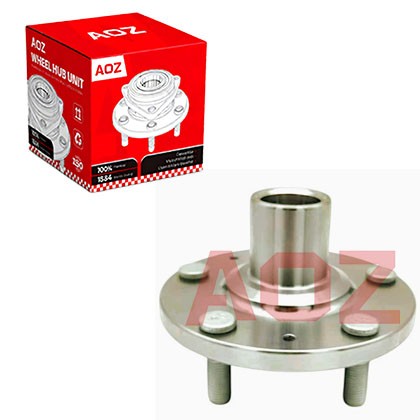

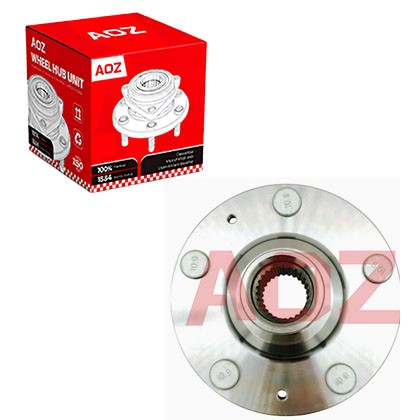

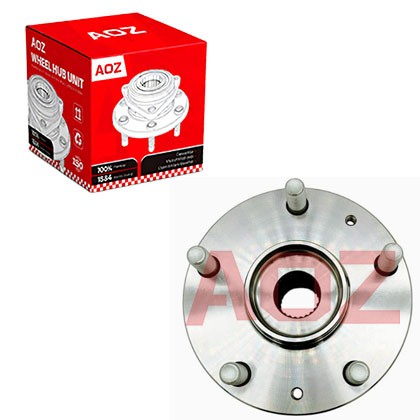

T11-3001017 wheel hub bearing unit for CHERY

Fit Vehicles /Application :CHERY

AOZ NO:LD629

OE Numbers: T11-3001017

Cross Reference Numbers: GSP 9210158, LYC T11-3001017, ZHZ T11-3001017

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :CHERY

AOZ NOLD629

OE Numbers: T11-3001017

Cross Reference Numbers: GSP 9210158, LYC T11-3001017, ZHZ T11-3001017

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers







OEM-NUMBER:

Cross Reference code

CHERY — T11-3001017

GSP: 9210158

T11-3001017AA

LYC: T11-3001017


ZHZ: T11-3001017


WBA: T11-3001017


BLUE PRINT: ADT38314


NIPPARTS: N4705018


Fit Vehicles


CHERY


    Tiggo 5 (T11)

2013 - Present

    Tiggo 5x (T11)

2017 - Present

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What is the warranty policy for your hub units?

A: We offer a standard warranty of 2 years or 60,000 kilometers. If a quality issue is confirmed to be caused by our manufacturing defect within the warranty period, we will provide a free replacement or a credit note for your next order.

Q2: Do you have ABS sensor options available for these hub units?

A: Yes, we provide hub units with both passive and active ABS encoder options. Please specify your exact vehicle model and year when inquiring, as we need to ensure the ABS sensor matches your vehicle's system perfectly.

Q3: What is the recommended installation torque for these hub units?

A: Proper torque is critical for hub unit safety. The recommended tightening torque for the axle nut is generally between 200-250 Nm (depending on the specific vehicle model). We strongly recommend using a calibrated torque wrench and strictly following the vehicle manufacturer's manual.

 "Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
