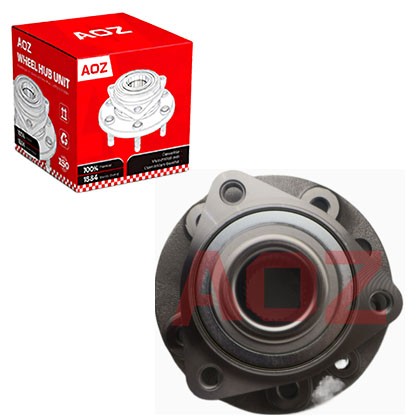

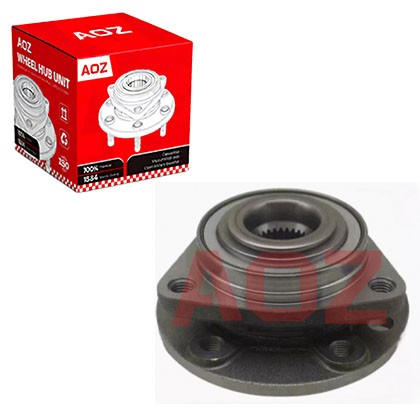

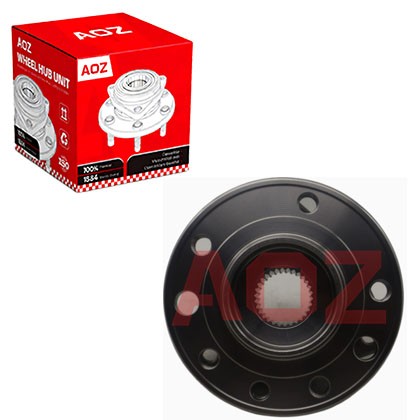

Wheel-hub-bearing-unit-for-BAIC-A012C00105

Wheel-hub-bearing-unit-for-BAIC-A012C00105

Fit Vehicles /Application :BAIC- SENOVA D50/D70/X55

AOZ NO:LD767

OE Numbers:A012C00105

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :BAIC- SENOVA D50/D70/X55

AOZ NO:LD767

OE Numbers:A012C00105

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
BAIC-A012C00105

Fit Vehicles
SENOVA
D50	2014-2019
D70	2013-2017
X55	2016-2019

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: How do I know if the hub noise is coming from the front or rear?

A: Front hub noise is often felt as a vibration in the steering wheel and changes pitch when turning. Rear hub noise is usually felt through the seat or floorboard and does not change pitch when turning.

Q2: Can I drive with a cracked ABS tone ring?

A: No. A cracked or missing tone ring will cause the ABS module to receive erratic wheel speed signals. This will trigger the ABS light and disable your anti-lock braking system, which is a major safety hazard.

Q3: Do I need to replace the wheel studs when replacing the hub?

A: Not necessarily. If the existing studs are not stripped, stretched, or rusted badly, they can be reused. However, if the old hub was loose, always inspect the studs carefully for stress damage.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
