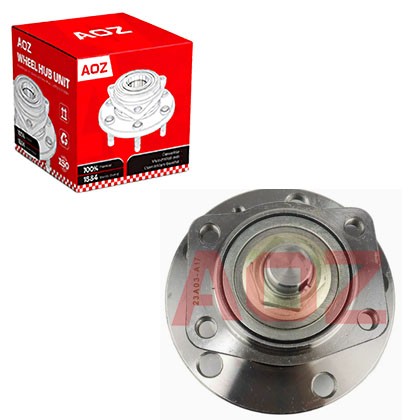

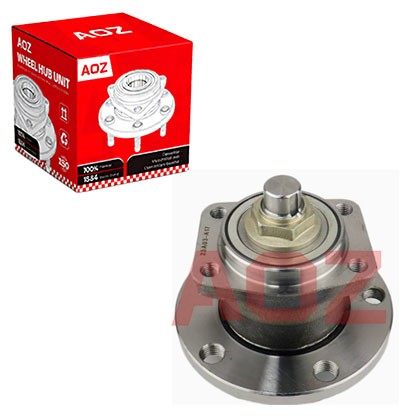

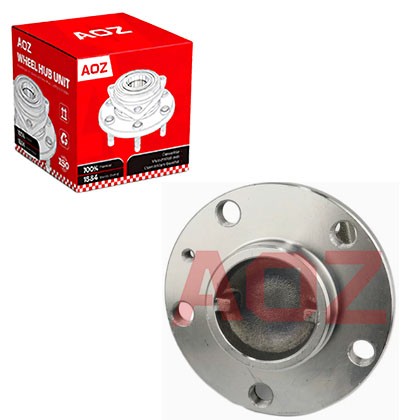

Wheel-hub-bearing-unit-for-Brilliance Auto-3006243

Wheel-hub-bearing-unit-for-Brilliance Auto-3006243

Fit Vehicles /Application :Brilliance Auto-Splendor/Grandeur/Coupe

AOZ NO:LD738

OE Numbers:3006243

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :Brilliance Auto-Splendor/Grandeur/Coupe

AOZ NO:LD738

OE Numbers:3006243

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
Brilliance Auto-3006243

Fit Vehicles
Brilliance Auto
Splendor	2006-2014
Grandeur	1986-Present
Coupe	2007-2009

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a worn hub assembly damage my CV axle?

A: Yes. If the hub has excessive lateral play, the constant wobbling puts severe stress on the CV axle splines and joints, potentially causing the axle to wear out or fail prematurely.

Q2: What causes a new hub to fail prematurely?

A: Premature failure is usually caused by improper installation, such as over-torquing the axle nut, failing to clean the mounting surface, or using an impact wrench instead of a torque wrench.

Q3: Do I need to perform a wheel alignment after replacing a hub?

A: Yes. Replacing a hub can slightly alter suspension geometry. An alignment is recommended to prevent uneven tire wear and ensure the vehicle tracks straight.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
