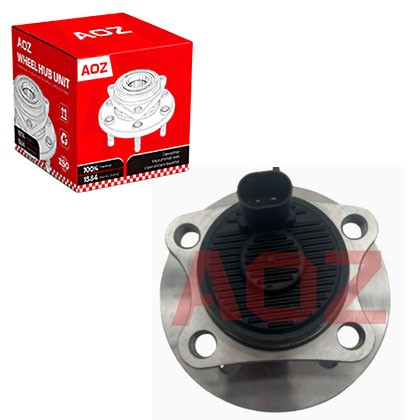

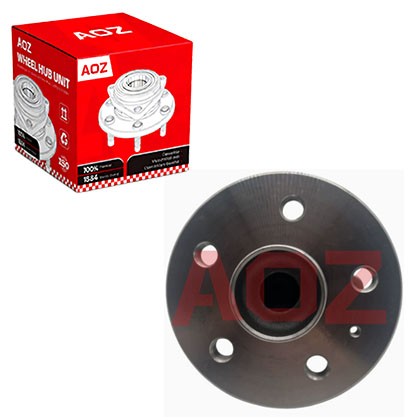

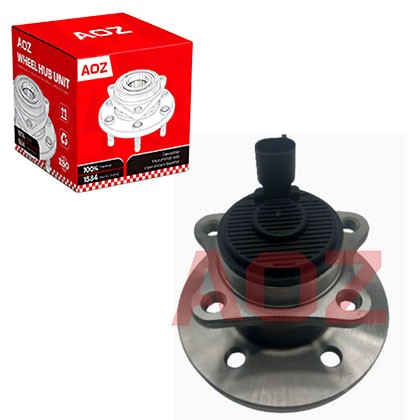

Wheel-hub-bearing-unit-for-Brilliance Auto-4296051

Fit Vehicles /Application :Brilliance Auto-V3-H220-H230

AOZ NO:L-333

OE Numbers:4296051

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :Brilliance Auto-V3-H220-H230

AOZ NO:L-333

OE Numbers:4296051

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Brilliance Auto-4296051






Fit Vehicles


Brilliance Auto


V3

2012-2019

H220

2013-2016

H230

2012-2016

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Is it safe to use an impact wrench to tighten the axle nut?

A: No. Impact wrenches can easily over-torque the nut, which crushes the internal bearing rollers and causes premature failure. Always use a calibrated torque wrench to the exact factory specification.



Q2: How can I tell if the noise is from the hub or the tires?

A: Tire noise usually changes with the tread pattern. A failing hub produces a continuous humming or growling noise that increases in pitch and volume as vehicle speed increases, regardless of the road surface.



Q3: Can I reuse the old axle nut after removing it?

A: Generally, no. Most modern axle nuts are single-use stretch bolts. Reusing an old nut can lead to improper clamping force, allowing the wheel to wobble and destroying the new bearing.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
