Fit Vehicles /Application :Chrysler Dodge Plymouth-Chrysler, Jeep
AOZ NO:L-624
OE Numbers:4779869AB
Cross Reference Numbers:4779869AA,K04779869AC
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :Chrysler Dodge Plymouth-Chrysler, Jeep
AOZ NO:L-624
OE Numbers:4779869AB
Cross Reference Numbers:4779869AA,K04779869AC
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
Chrysler DodgePlymouth-4779869AB | 4779869AA |
K04779869AC |
Fit Vehicles | |
CHRYSLER | |
200 | 2015-2017 |
JEEP | |
CHEROKEE | 2014-2023 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

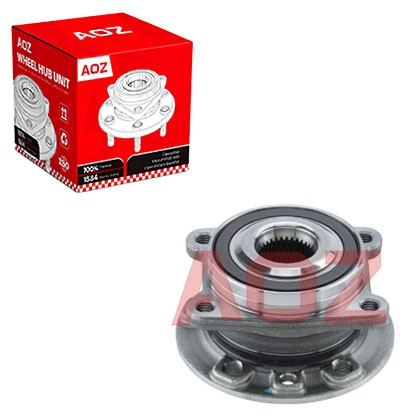

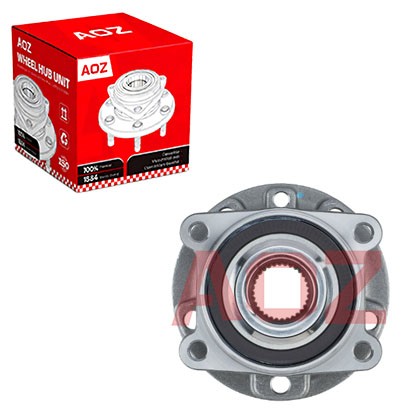

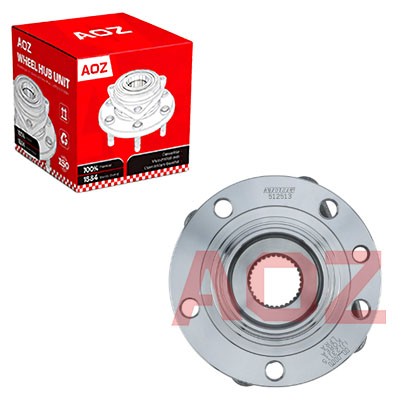

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: Can a hub bearing failure cause my TPMS light to come on?
A: Indirectly, yes. If the bearing damage causes the ABS sensor to fail, some vehicles will disable the TPMS system as well, since both systems share wheel speed data. Fixing the hub and clearing the codes should resolve the TPMS light.
Q2: Why does the hub flange have a small notch or marking on it?
A: This marking is an alignment indicator. Some vehicles require the hub to be installed in a specific orientation relative to the knuckle or ABS sensor. Always check your vehicle's service manual for proper alignment before final tightening.
Q3: Can I grease the wheel studs before installing the wheel?
A: No. Wheel studs and lug nuts should always be installed dry. Applying grease or anti-seize to the threads changes the friction coefficient, which means the torque reading will be inaccurate. This can lead to over-tightening and stretched studs.
