Fit Vehicles /Application :DODGE-Intrepid Chrysler: 300M, Concorde,LHS Eagle Vision
AOZ NO:LD026
OE Numbers:512029
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :DODGE-Intrepid Chrysler: 300M, Concorde,LHS Eagle Vision
AOZ NO:LD026
OE Numbers:512029
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
Chrysler Dodge Plymouth-512029 | |
Fit Vehicles | |
Dodge | |
Intrepid | 1993-2004 |
Chrysler | |
300M | 1998-2004 |
Concorde | 1992-2004 |
LHS | 1993-2001 |
Eagle | |
Vision | 1992-1997 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

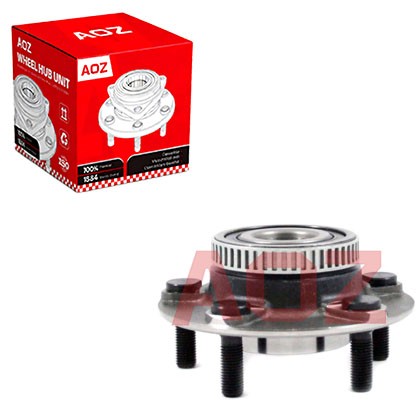

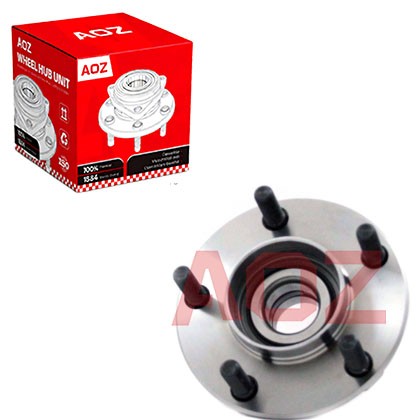

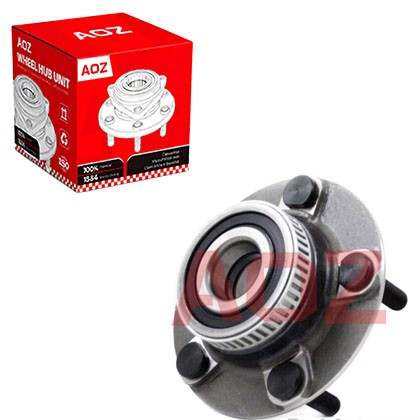

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |







FAQs
Q1: What is the purpose of the rubber grommet on the ABS wire connector?
A: The rubber grommet seals the connector against moisture, road salt, and debris. If this grommet is torn, missing, or improperly seated during installation, water can corrode the electrical contacts, causing intermittent ABS faults that are difficult to diagnose.
Q2: Can I install a hub assembly without a hydraulic press if my vehicle uses a bolt-on design?
A: Yes, bolt-on hub assemblies are designed to be installed with standard hand tools and a torque wrench. However, you still need to ensure the mounting surface is perfectly clean and that you follow the correct bolt tightening sequence to avoid warping the hub flange.
Q3: Does the age of a new hub assembly in inventory affect its performance?
A: Generally no, as long as it has been stored properly in a dry environment. However, if a hub has been sitting for many years, the grease inside may have settled or the seals may have dried out. Always spin the hub by hand before installation to check for smooth rotation and listen for any unusual sounds.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
