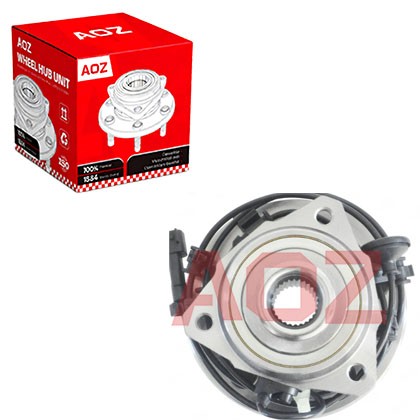

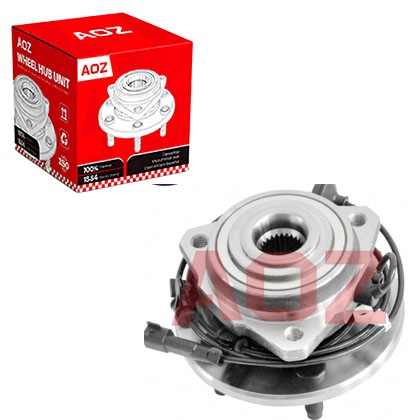

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-513177

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-513177

Fit Vehicles /Application :Chrysler Dodge Plymouth-JEEP LIBERTY

AOZ NO:L-264

OE Numbers:513177

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :Chrysler Dodge Plymouth-JEEP LIBERTY

AOZ NO:L-264

OE Numbers:513177

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
Chrysler Dodge Plymouth-513177

Fit Vehicles
JEEP
LIBERTY	2002-2007

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: How do I know if my vehicle needs a 2WD or 4WD hub?

A: 4WD hubs have a splined center hole for the axle shaft. 2WD hubs usually have a smooth center with a bolt pattern for the brake rotor.

Q2: Can a bad hub damage my CV axle?

A: Yes. Excessive play in a worn hub causes constant wobbling, which puts severe stress on the CV axle splines and joints, leading to premature failure.

Q3: Does the new hub come with pre-applied grease?

A: Yes. Modern hubs are sealed and pre-greased for life. Never try to add more grease, as it will blow out the internal seals.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
