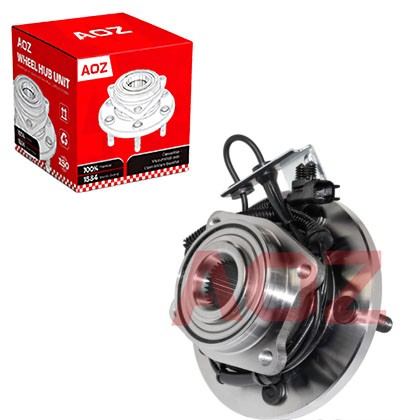

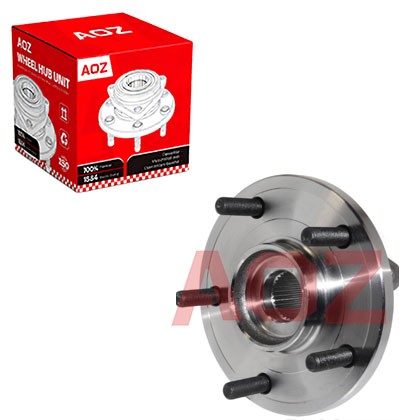

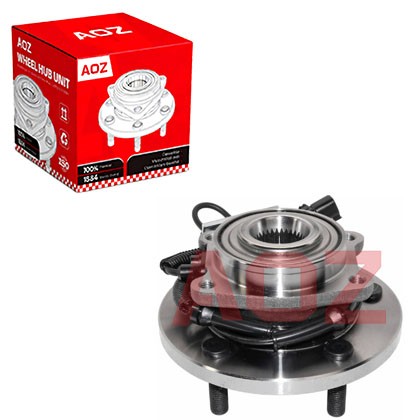

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-513273

Fit Vehicles /Application :Chrysler Dodge Plymouth-CHRYSLER TOWN & COUNTRY

DODGE GRAND CARAVAN,VOLKSWAGEN ROUTAN

AOZ NO:L-803

OE Numbers:513273

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :Chrysler Dodge Plymouth-CHRYSLER TOWN & COUNTRY

DODGE GRAND CARAVANVOLKSWAGEN ROUTAN

AOZ NO:L-803

OE Numbers:513273

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Chrysler Dodge Plymouth-513273






Fit Vehicles


CHRYSLER


TOWN & COUNTRY

2008-2011

DODGE


GRAND CARAVAN

2008-2011

VOLKSWAGEN


ROUTAN

2009-2012

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What happens if I accidentally drop the new hub on the concrete before installing it?

A: If the hub drops flat on its mounting flange, it is usually fine. However, if it lands on the center axle shaft or the ABS connector, the internal bearing preload could be altered, or the magnetic encoder ring could be cracked. Inspect it carefully.



Q2: Can road salt cause wheel bearing failure?

A: Yes. Road salt is highly corrosive. Over time, it can rust the hub-to-knuckle mating surface, making removal difficult. More importantly, if salt breaches the seal, it will contaminate the internal grease and rapidly destroy the bearing.



Q3: How do I know if my vehicle uses a press-in bearing or a bolt-on hub assembly?

A: Press-in bearings require a hydraulic press to remove the old bearing and install the new one into the steering knuckle. Bolt-on hub assemblies are complete units that simply bolt onto the knuckle with three or four bolts. Most modern vehicles use bolt-on assemblies for easier service.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
