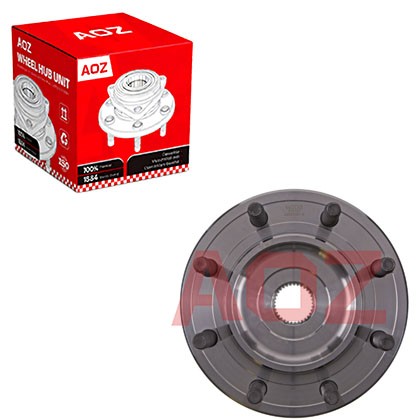

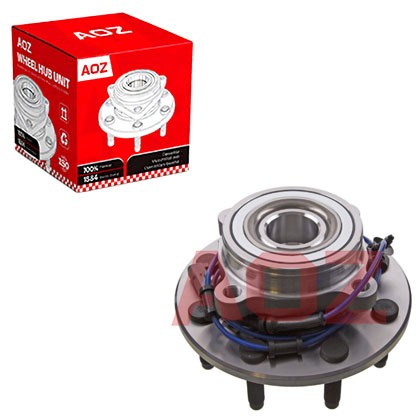

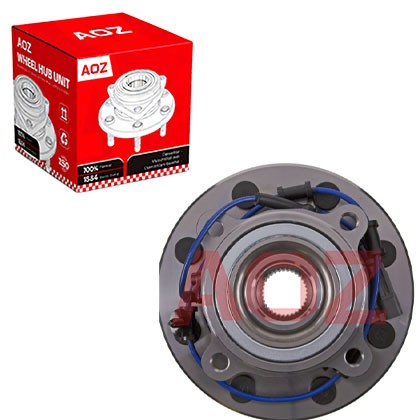

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-515101

Fit Vehicles /Application :DODGE-RAM 1500 PICKUP,RAM 2500 PICKUP,RAM 3500 PICKUP

AOZ NO:LD019

OE Numbers:515101

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :DODGE-RAM 1500 PICKUPRAM 2500 PICKUP,RAM 3500 PICKUP

AOZ NO:LD019

OE Numbers:515101

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Chrysler Dodge Plymouth-515101






Fit Vehicles


Dodge


RAM 2500 PICKUP

2006-2008

RAM 3500 PICKUP

2006-2008

RAM 1500 PICKUP

2006-2008

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What is the difference between Generation 1, 2, and 3 wheel hub bearings?

A: Generation 1 consists of a basic double-row bearing without a flange, requiring separate components during assembly. Generation 2 includes a mounting flange for easier installation on front-wheel-drive vehicles. Generation 3 is a fully integrated unit that includes the flange, bearing, and ABS sensor, allowing for direct bolt-on installation.



Q2: Can I use a hammer to install or remove a wheel hub bearing?

A: Absolutely not. Hammering or striking the bearing directly can cause internal damage, crack the housing, or destroy the ABS magnetic encoder ring. Always use a hydraulic press or dedicated threaded installation tools to apply smooth, even pressure.



Q3: Why is it recommended to replace both wheel hub bearings on the same axle at the same time?

A: Bearings on the same axle endure similar loads, mileage, and road conditions. Replacing them in pairs ensures consistent handling, prevents future imbalance, and saves you from having to pay for a second labor charge and wheel alignment later.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
