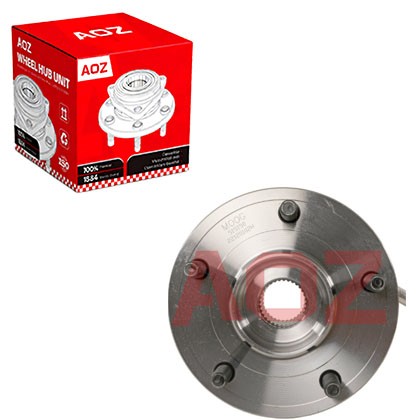

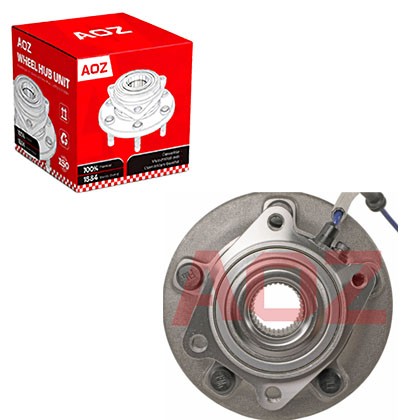

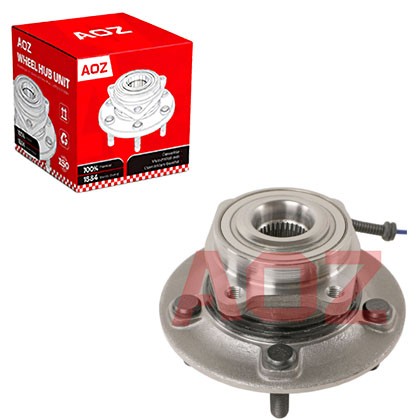

Wheel-hub-bearing-unit-for-Chrysler Dodge Plymouth-515150

Fit Vehicles /Application :Chrysler Dodge Plymouth-Chrysler Town & Country,Dodge Grand Caravan,RAM C/V

AOZ NO:LD069

OE Numbers:515150

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles /Application :Chrysler Dodge Plymouth-Chrysler Town & CountryDodge Grand CaravanRAM C/V

AOZ NO:LD069

OE Numbers:515150

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

Chrysler Dodge Plymouth-515150






Fit Vehicles


Chrysler


Town & Country

2012-2016

Dodge


Grand Caravan

2012-2020

RAM


C/V

2012-2016

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes





ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Can a bad hub bearing cause my car to fail an emissions test?
A: Yes, indirectly. If the ABS sensor failure triggers the Check Engine light, many emissions testing stations will automatically fail the vehicle, since an illuminated MIL means the onboard diagnostics are not ready for testing.


Q2: Why does the hub flange have a thin paper or rubber gasket on the mounting face?
A: This gasket prevents direct metal-to-metal contact between the hub and the knuckle, which helps prevent galvanic corrosion — especially on vehicles with aluminum knuckles and steel hubs. Do not remove it during installation.


Q3: Can I replace a hub assembly in cold weather without issues?
A: You can, but be aware that cold metal contracts, making bolts and studs harder to remove. It also makes rubber seals and wiring insulation more brittle. If possible, warm the vehicle in a garage before starting the job to avoid snapping bolts or cracking connectors.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
