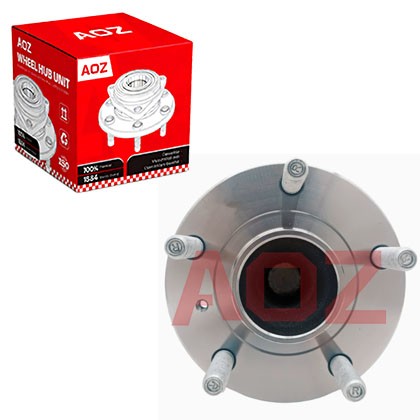

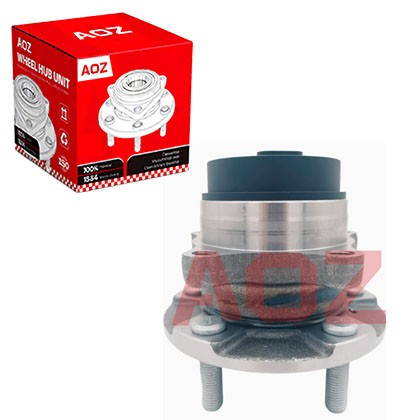

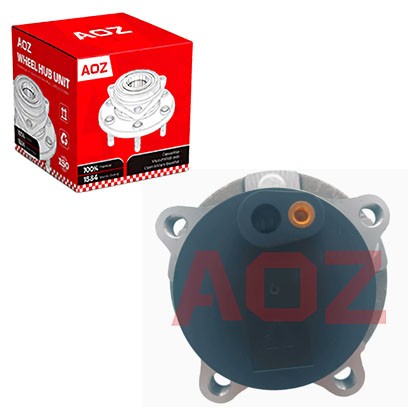

Wheel-hub-bearing-unit-for-DFM-C20-3001010\C203001010

Fit Vehicles /Application :DFM-DFLZ-CM7/C20/DM7

AOZ NO:LD1463

OE Numbers:C20-3001010,C203001010

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFM-DFLZ-CM7/C20/DM7

AOZ NO:LD1463

OE Numbers:C20-3001010,C203001010

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM-C20-3001010
C203001010

Fit Vehicles
DFM
DFLZ-CM7/C20/DM7	2013-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What is the correct orientation for the ABS magnetic ring?

A: The magnetic encoder ring must face inward, directly toward the ABS sensor. Installing it backwards will trigger an ABS warning light and disable the braking system.

Q2: Can I hammer the hub assembly into place?

A: Never. Striking the hub directly with a hammer can crack the housing or damage the internal bearing races. Always use a proper press tool or threaded installer to apply even pressure.

Q3: What causes a new hub to fail prematurely?

A: Premature failure is usually caused by improper installation, such as over-torquing the axle nut, failing to clean the mounting surface, or using an impact wrench to tighten the nut.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
