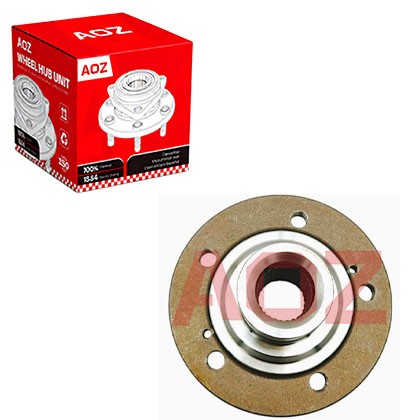

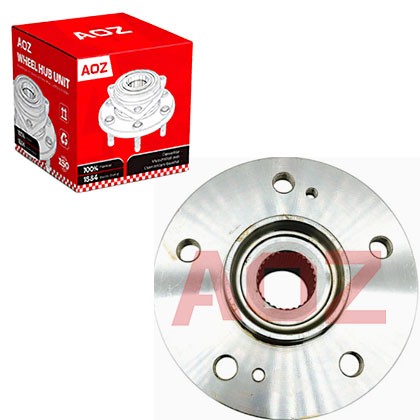

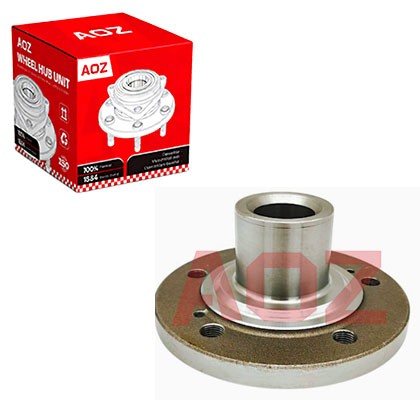

Wheel-hub-bearing-unit-for-DFM-E130011J-D0200\E130011JD0200

Fit Vehicles /Application :DFM-AEOLUS-AX7-Front

AOZ NO:LD732

OE Numbers:E130011J-D0200,E130011JD0200

Cross Reference Numbers:4163005

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFM-AEOLUS-AX7-Front

AOZ NO:LD732

OE Numbers:E130011J-D0200,E130011JD0200

Cross Reference Numbers:4163005

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM-E130011J-D0200	4163005
E130011JD0200

Fit Vehicles
DFM
AEOLUS-AX7-Front	2014-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Do I need to align the wheels after replacing a hub assembly?

A: Yes. Replacing a hub can slightly alter suspension geometry. An alignment is recommended to prevent uneven tire wear and ensure straight tracking.

Q2: Can I install a hub assembly without cleaning the knuckle surface first?

A: No. Rust or debris on the mounting surface can cause the hub to sit unevenly, leading to vibration and premature failure. Always clean the surface to bare metal before installation.

Q3: Why is there a protective cap on the new hub's splines?

A: It protects the delicate splines and threads during shipping. Remove it only right before installing the axle shaft to prevent damage that could compromise the connection.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
