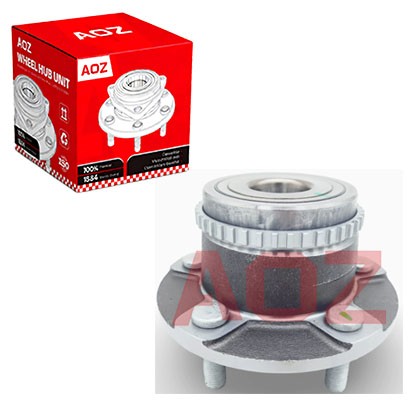

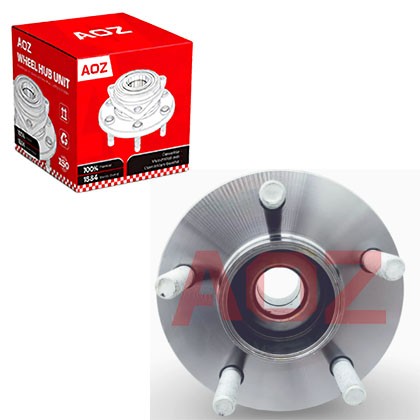

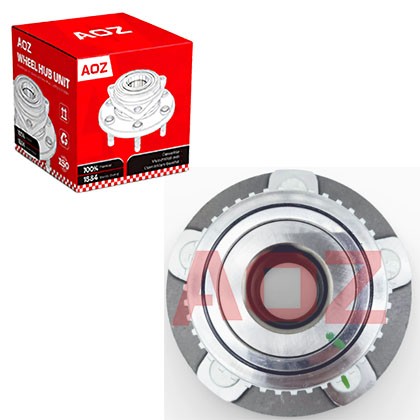

Wheel-hub-bearing-unit-for-DFM-DACF30110655

Wheel-hub-bearing-unit-for-DFM-DACF30110655

Fit Vehicles /Application :DFM-GLORY-560

AOZ NO:LD731

OE Numbers:DACF30110655

Cross Reference Numbers:DACF30110655BG,35002600-FK01

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :DFM-GLORY-560

AOZ NO:LD731

OE Numbers:DACF30110655

Cross Reference Numbers:DACF30110655BG,35002600-FK01

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
DFM-DACF30110655	DACF30110655BG
	35002600-FK01

Fit Vehicles
DFM
GLORY-560	2015-2024

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Does the direction of the hub assembly matter during installation?

A: Yes. Hubs are side-specific (Left vs. Right). The ABS sensor wire location and bolt patterns are mirrored. Forcing the wrong side on can damage the wiring or mounting studs.

Q2: Should I apply grease to the wheel studs?

A: No. Wheel studs should be installed dry unless the manufacturer specifies otherwise. Grease can alter the torque values, leading to over-tightening and potential stud stretching.

Q3: How do I know if the bearing noise is actually coming from the hub?

A: A failing hub usually produces a growling or humming noise that gets louder with speed and changes pitch when turning. If the noise stops when you shift weight to that side while turning, the hub is likely the culprit.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
