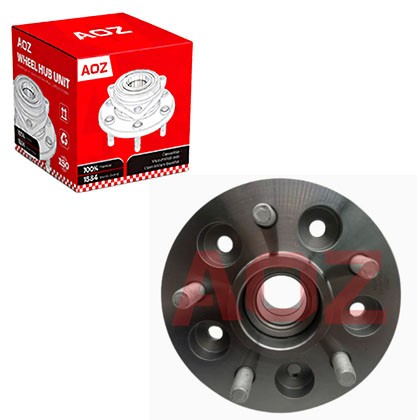

Wheel-hub-bearing-unit-for-FOTON-K1300170007A0-05\K1300170007A005

Fit Vehicles /Application :FOTON-VIEW G7

AOZ NO:LD774

OE Numbers:K1300170007A0-05,K1300170007A005

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles /Application :FOTON-VIEW G7

AOZ NO:LD774

OE Numbers:K1300170007A0-05,K1300170007A005

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
FOTON-K1300170007A0-05
K1300170007A005

Fit Vehicles
FOTON
VIEW G7	2014-Present

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What does "LWD" or "RWD" mean in part descriptions?

A: They stand for Left Wheel Drive (Driver Side) and Right Wheel Drive (Passenger Side). Front hubs are often side-specific due to ABS sensor wire routing.

Q2: Can I use anti-seize on the hub mounting surface?

A: Yes, but use it sparingly. A very thin layer prevents future rust, but too much can cause the hub to sit unevenly and create vibration.

Q3: Why is there a gap between the hub and knuckle after tightening?

A: Rust or debris is trapped between the surfaces. This will destroy the new bearing. You must clean both surfaces to bare metal before installing.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
