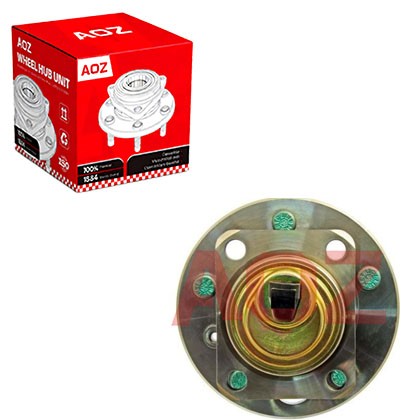

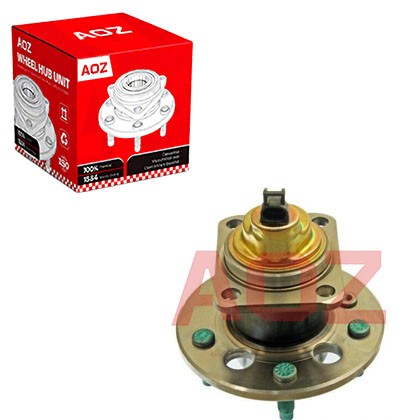

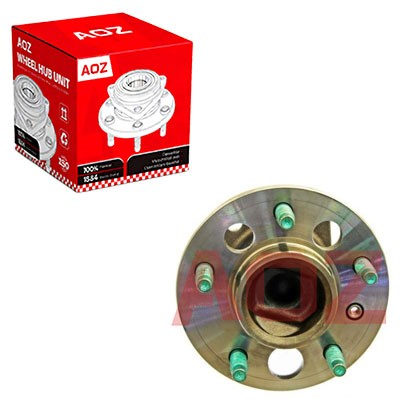

Wheel-hub-bearing-unit-for-GM-USA-512004

Fit Vehicles/Application:GM-USA-Buick regal;Oldsmobile: Cutlass Supreme;Pontiac: Grand prix

AOZ NO:LD108

OE Numbers:512004

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit  Vehicles/Application:GM-USA-Buick regal;Oldsmobile: Cutlass Supreme;Pontiac: Grand prix

AOZ NO:LD108

OE Numbers:512004

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-512004





Fit Vehicles


Buick


regal

1972-2004

Oldsmobile


CutlassSupreme

1966-1997

Pontiac


Grand prix

1962-2008

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: Why does my hub bearing make a roaring noise that sounds like an airplane taking off?
A: Severely worn bearings can produce a loud roaring or rumbling sound similar to an aircraft engine. This indicates advanced internal damage and the bearing should be replaced immediately to avoid wheel seizure.


Q2: Why does my new hub have a small sticker with a barcode on it?
A: This sticker contains the part number, batch information, and traceability data for quality control purposes. Keep it intact until after installation in case you need to verify the correct part was received or process a return.


Q3: Can I install a hub assembly without removing the brake rotor?
A: On most vehicles, the brake rotor must be removed to access the hub mounting bolts or to properly inspect the mounting surface. Check your vehicle's specific service procedure before starting.

Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
