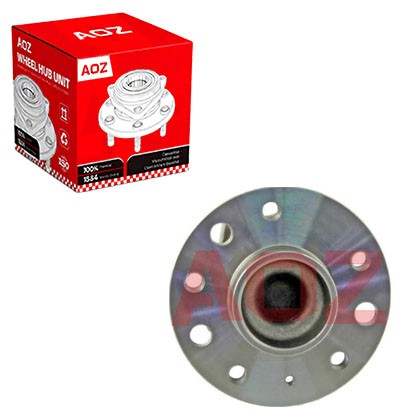

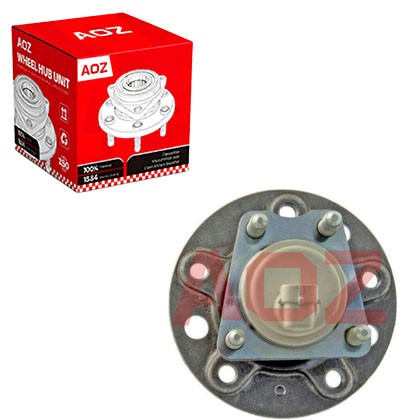

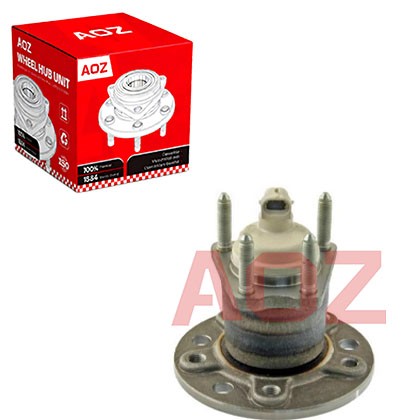

Wheel-hub-bearing-unit-for-GM-USA-512238

Wheel-hub-bearing-unit-for-GM-USA-512238

Fit Vehicles/Application:GM-USA-Saturn: L Sedan, L300, LW Wagon

AOZ NO:L-C02

OE Numbers:512238

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Saturn: L Sedan, L300, LW Wagon

AOZ NO:L-C02

OE Numbers:512238

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-512238

Fit Vehicles
Saturn
L Sedan	1999-2004
L300	2000-2005
LW Wagon	2000-2005

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What causes a hub bearing to make a grinding noise that is constant regardless of turning direction?

A: Constant grinding regardless of turning indicates severe internal damage where both sides of the raceway are worn. This is an advanced failure stage requiring immediate replacement.

Q2: Why does my new hub have a small white marking on the ABS encoder ring?

A: This marking indicates the magnetic polarity orientation for quality testing during manufacturing. It has no functional purpose after installation and can be ignored.

Q3: Can I install a hub assembly if the ABS connector feels slightly loose?

A: No. A loose connector can cause intermittent signal loss, triggering ABS and stability control warning lights. The connector must fit snugly with an audible click when fully seated.

Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
