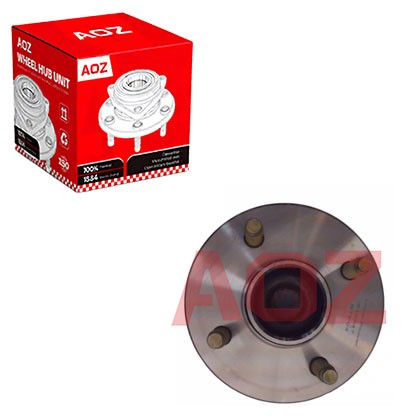

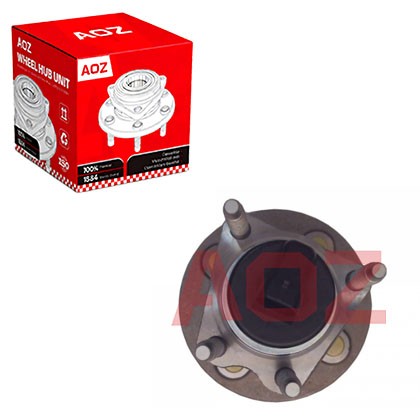

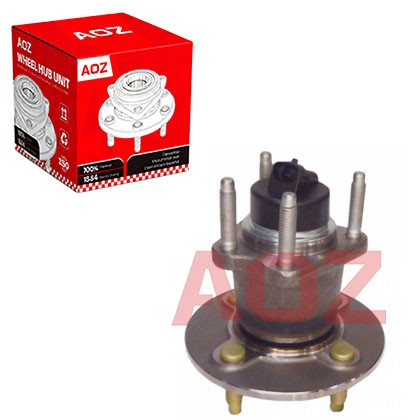

Wheel-hub-bearing-unit-for-GM-USA-512247

Wheel-hub-bearing-unit-for-GM-USA-512247

Fit Vehicles/Application:GM-USA-Chevrolet Cobalt,Pontiac G5, Pursuit,Saturn Ion

AOZ NO:L-073

OE Numbers:512247

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Chevrolet Cobalt,Pontiac G5, Pursuit,Saturn Ion

AOZ NO:L-073

OE Numbers:512247

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-512247

Fit Vehicles
Chevrolet
Cobalt	2003-2010
Pontiac
G5	2005-2010
Pursuit	2005-2010
Saturn
Ion	2003-2007

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What causes a hub bearing to make a ticking noise that only appears at very low speeds?

A: At very low speeds, individual roller impacts against raceway damage become audible as distinct ticks. At higher speeds, these impacts blend into a continuous hum or growl.

Q2: Why does my new hub have a small dimple on the ABS sensor body?

A: This dimple is a manufacturing reference point used during quality inspection to verify sensor alignment. It has no functional purpose during installation.

Q3: Can a bad hub bearing cause my vehicle to make a vibration that gets worse when going uphill?

A: Yes. Driving uphill increases the load on the drivetrain and bearings. If the bearing has internal damage, the additional load can amplify the vibration.

“Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
