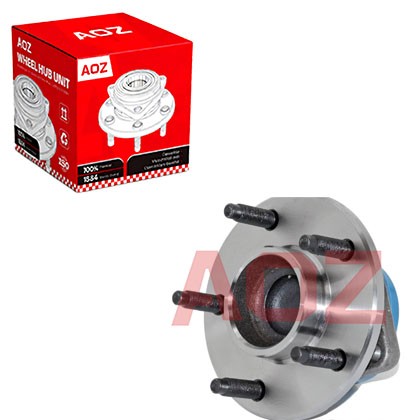

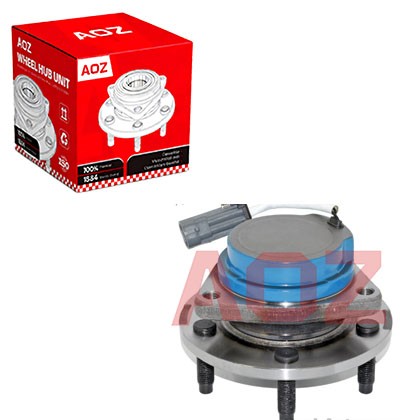

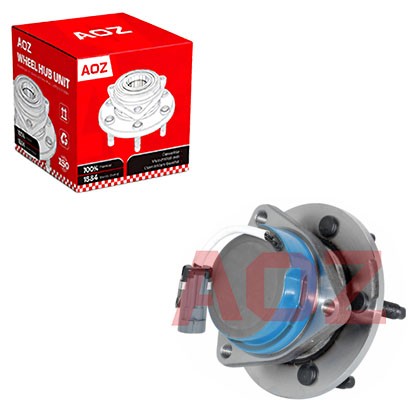

Wheel-hub-bearing-unit-for-GM-USA-512246

Fit Vehicles/Application:GM-USA-Buick Terraza,Cadiliac CTS, STS,Chevrolet Uplander,Pontiac Montana,Saturn relay

AOZ NO:L-C32

OE Numbers:512246

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Buick Terraza,Cadiliac CTS, STS,Chevrolet Uplander,Pontiac Montana,Saturn relay

AOZ NO:L-C32

OE Numbers:512246

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-512246





Fit Vehicles


Buick


Terraza

2005-2007

Cadiliac


CTS

2002-2019

STS

2005-2011

Chevrolet


Uplander

2005-2009

Pontiac


Montana

1997-2009

Saturn


relay

2005-2007







GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers
















FAQs

Q1: Why does my hub bearing make a growling noise that seems to come from the center of the vehicle?

A: Hub bearing noise often travels through the suspension, subframe, and chassis, making it difficult to locate the exact source. The sound may appear to come from the center or the opposite side due to how vibrations resonate through the vehicle structure.


Q2: Why does my new hub have a small piece of tape over the mounting bolt holes?

A: The tape protects the threaded holes from dirt, moisture, and corrosion during storage and shipping. Remove it before installation to ensure the bolts thread in cleanly.


Q3: Can a hub bearing failure cause my vehicle to make a vibration that is felt in the gas pedal?

A: Yes. Drivetrain vibrations from a worn bearing can travel through the axle and into the driveline, creating a sensation in the accelerator pedal that increases with vehicle speed.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
