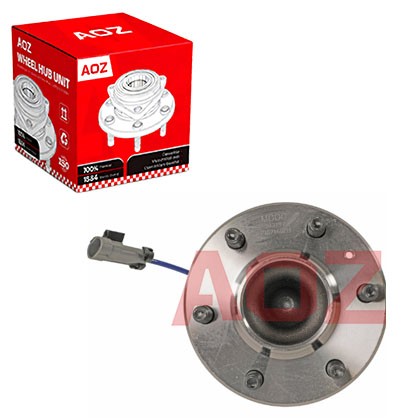

Wheel-hub-bearing-unit-for-GM-USA-513197

Fit Vehicles/Application:GM-USA-Buick Terraza,Cadiliac CTS, STS, SrX,Chevrolet Uplander,Pontiac Montana,

AOZ NO:L-087

OE Numbers:513197

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Buick TerrazaCadiliac CTS, STS, SrXChevrolet UplanderPontiac Montana,

AOZ NO:L-087

OE Numbers:513197

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513197





Fit Vehicles


Buick


Terraza

2005-2007

Cadiliac


CTS

2002-2019

STS

2005-2011

SrX

2004-2016

Chevrolet


Uplander

2005-2008

Pontiac


Montana

1997-2009


GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What causes a hub bearing to make a squeaking noise that only appears in wet weather?

A: Moisture can penetrate compromised seals and reach the bearing internals. Water contamination degrades the grease and causes metal-to-metal contact, producing a squeak that may disappear once the bearing dries out.


Q2: Why does my new hub have a small colored stripe on the ABS connector?

A: The color stripe is a visual identifier used during manufacturing to distinguish connector types or wire configurations. It helps ensure the correct part is matched to the vehicle application.


Q3: Can a bad hub bearing cause my vehicle to make a vibration that is felt in the brake pedal?

A: Yes. Hub runout transfers to the brake rotor, and when the pads clamp down during braking, the uneven rotor surface creates a pulsation that travels through the brake pedal.
