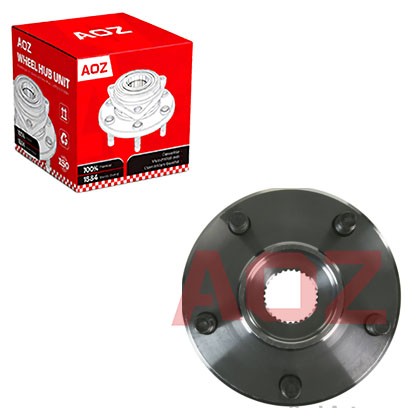

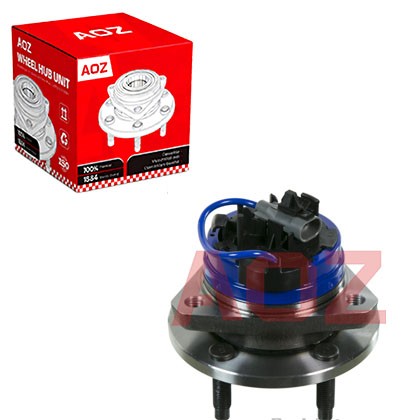

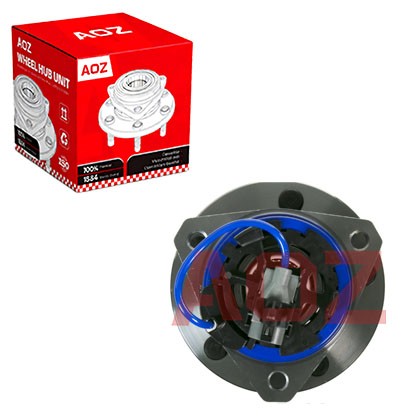

Wheel-hub-bearing-unit-for-GM-USA-513214

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT, HHR, MALIBU,PONTIAC G6,SATURN AURA

AOZ NO:L-268

OE Numbers:513214

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT, HHR, MALIBU,PONTIAC G6,SATURN AURA

AOZ NO:L-268

OE Numbers:513214

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513214





Fit Vehicles


CHEVROLET


COBALT

2008-2010

HHR

2008-2010

MALIBU

2004-2012

PONTIAC


G6

2005-2010

SATURN


 AURA

2007-2009

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What causes a hub bearing to make a rattling sound at low speeds that disappears at higher speeds?

A: Loose or damaged rollers inside the bearing can rattle at low rotational speeds. As speed increases, centrifugal force holds the rollers against the raceway, silencing the rattle.


Q2: Why does my new hub have a small groove machined into the ABS connector housing?

A: This groove is a keying feature that matches a corresponding tab on the vehicle's wiring harness connector. It ensures the plug can only be inserted in the correct orientation.


Q3: Can a bad hub bearing cause my vehicle to make a vibration that worsens when carrying passengers?

A: Yes. Additional weight increases the load on the bearing, amplifying any existing vibration from internal damage. The more weight, the more pronounced the vibration becomes.
