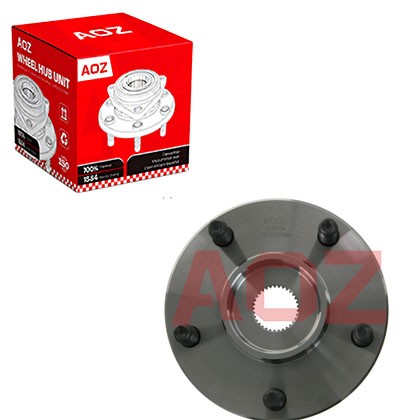

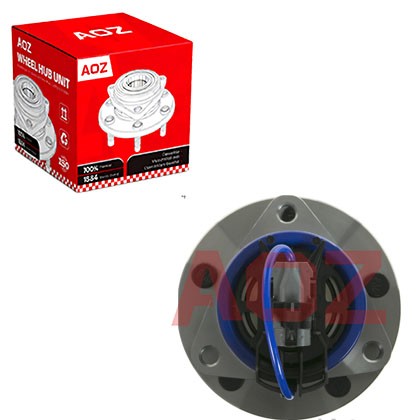

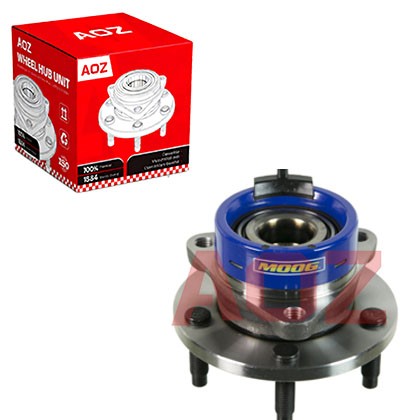

Wheel-hub-bearing-unit-for-GM-USA-513206

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT ,HHR,PONTIAC G5 ,PURSUIT ,SATURN ION

AOZ NO:LD136

OE Numbers:513206

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT ,HHR,PONTIAC G5 ,PURSUIT ,SATURN ION

AOZ NO:LD136

OE Numbers:513206

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513206




Fit Vehicles


CHEVROLET


COBALT

2005-2010

HHR

2006-2011

PONTIAC


G5

2007-2010

PURSUIT

2005-2006

SATURN


ION

2003-2007



GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers

















FAQs

Q1: Why does my hub bearing make a humming noise that gets quieter when I lightly apply the brakes?

A: Light braking applies a small axial load that temporarily shifts the bearing internals, changing the contact pattern and sometimes silencing the noise. This often indicates early-stage wear.


Q2: Why does my new hub have a small rubber bumper on the ABS wire clip?

A: The rubber bumper prevents the wire clip from vibrating against the knuckle or suspension components, which could cause wire fatigue or chafing over time.


Q3: Can a hub bearing failure cause my vehicle to make a vibration that is felt in the seat cushion on the driver's side?

A: Yes. A failing left-side rear bearing can transmit vibration through the suspension and chassis into the driver's seat. If the vibration is strongest in the seat rather than the steering wheel, check the rear bearings first.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
