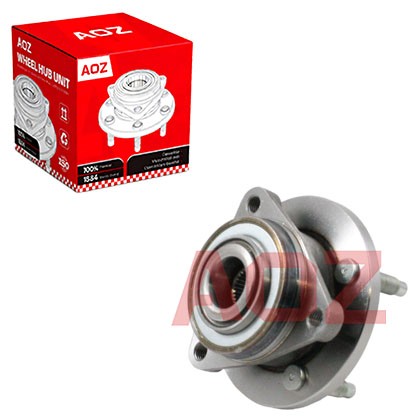

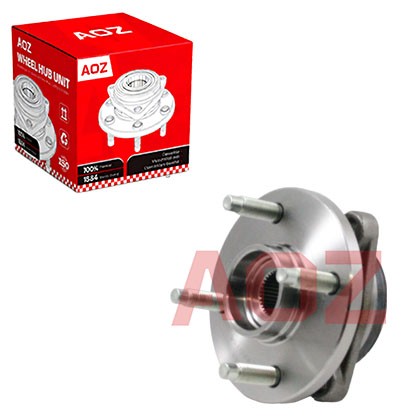

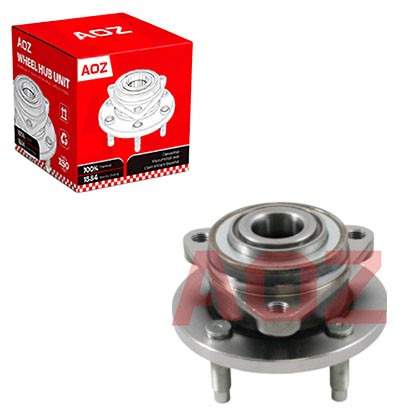

Wheel-hub-bearing-unit-for-GM-USA-513205

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT ,PONTIAC G5 ,PURSUIT ,SATURN ION

AOZ NO:LD134

OE Numbers:513205

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-CHEVROLET COBALT ,PONTIAC G5 ,PURSUIT ,SATURN ION

AOZ NO:LD134

OE Numbers:513205

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513205





Fit Vehicles


CHEVROLET


COBALT

2005-2010

PONTIAC


G5

2007-2010

PURSUIT

2005-2006

SATURN


ION

2003-2007

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What causes a hub bearing to make a clicking noise that only appears when accelerating from a stop?

A: Excessive internal clearance in a worn bearing allows the hub to shift suddenly when torque is first applied. This movement creates a clicking sound as the components settle under load.


Q2: Why does my new hub have a small raised line on the ABS sensor housing?

A: This line is a manufacturing reference mark used during quality inspection to verify dimensional accuracy. It has no functional purpose during installation and can be ignored.


Q3: Can a bad hub bearing cause my vehicle to make a noise that sounds like a failing transmission?

A: Yes. Both can produce a whining or grinding sound that changes with vehicle speed. To differentiate, check whether the noise changes with turning (hub bearing) or remains constant regardless of steering input (transmission).
