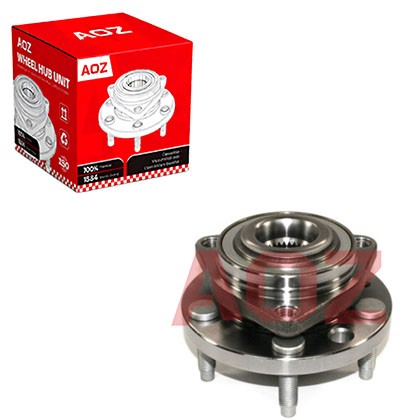

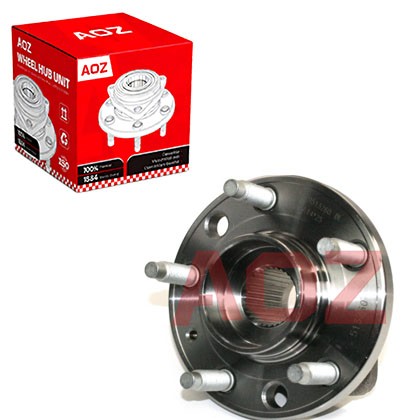

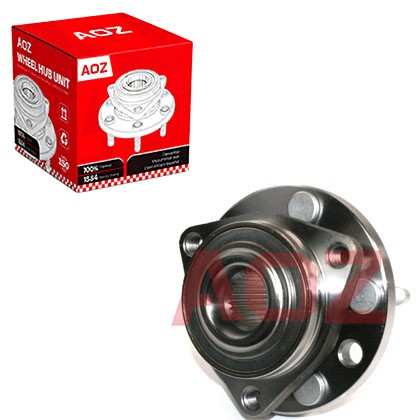

Wheel-hub-bearing-unit-for-GM-USA-513260

Fit Vehicles/Application:GM-USA-PONTIAC MONTANA

AOZ NO:LD141

OE Numbers:513260

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-PONTIAC MONTANA

AOZ NO:LD141

OE Numbers:513260

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-513260






Fit Vehicles


PONTIAC


MONTANA

 2006-2009

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: What causes a hub bearing to make a grinding noise that only appears when the vehicle is in park and the engine is running?

A: This is unlikely to be a hub bearing issue, as the wheels are not rotating in park. The noise is more likely coming from the engine, transmission, or accessory drive components. Hub bearing noise only occurs when the vehicle is moving.


Q2: Why does my new hub have a small engraved arrow on the ABS sensor body?

A: Some sensor assemblies are directional and must be installed in a specific orientation. The arrow indicates the correct installation direction relative to the encoder ring — always follow the manufacturer's instructions.


Q3: Can a bad hub bearing cause my vehicle to make a noise that sounds like a failing power steering pump?

A: Yes. Both can produce a whining or groaning sound that changes with steering input. To differentiate, check whether the noise changes with vehicle speed (hub bearing) or steering wheel position (power steering pump).

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
