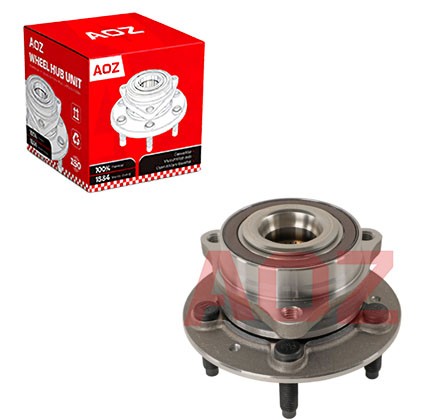

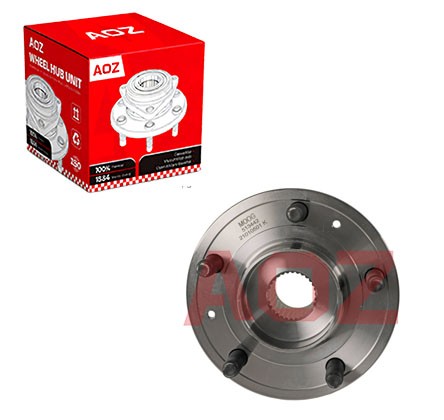

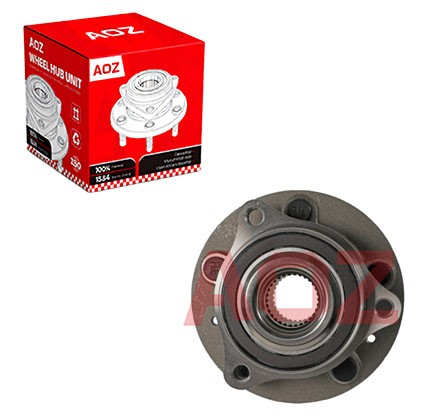

Wheel-hub-bearing-unit-for-GM-USA-513442\HA590786\13507355

Fit Vehicles/Application:GM-USA-CHEVROLET EQUINOX

AOZ NO:L-875

OE Numbers:513442

Cross Reference Numbers:HA590786，13507355

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-CHEVROLET EQUINOX

AOZ NO:L-875

OE Numbers:513442

Cross Reference Numbers:HA590786，13507355

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-513442	HA590786
	13507355

Fit Vehicles
CHEVROLET
EQUINOX	2018-2021

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What causes a hub bearing to make a grinding noise that only appears when braking lightly?
A: Light braking applies a small axial load that shifts the bearing internals slightly. If the raceway has uneven wear, this load change can cause the rollers to contact damaged areas, producing a grinding sound that disappears when the brake is released.

Q2: Why does my new hub have a small metal clip holding the ABS wire to the connector?
A: This clip secures the wire in the correct position during shipping and provides a reference point for proper routing during installation. It can be removed once the wire is routed along the factory path.

Q3: Can a bad hub bearing cause my vehicle to make a vibration that is felt in the steering column?
A: Yes. Front hub bearing failures transmit vibration through the steering knuckle and linkage into the steering column. The vibration typically increases with vehicle speed and may become more pronounced during turns.
