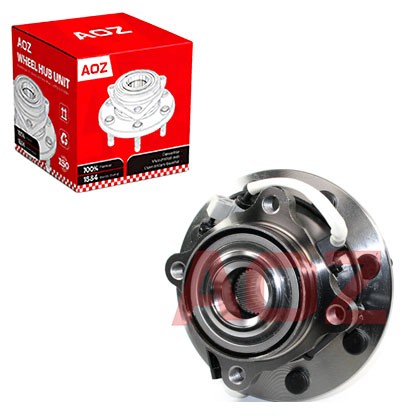

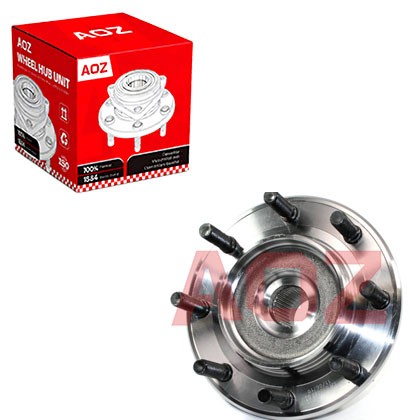

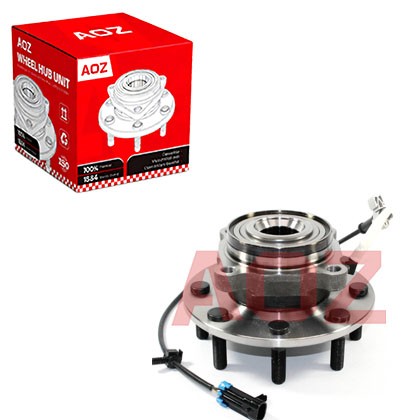

Wheel-hub-bearing-unit-for-GM-USA-515087

Wheel-hub-bearing-unit-for-GM-USA-515087

Fit Vehicles/Application:GM-USA-Chevrolet:Silverado 3500,GMC: Sierra 3500

AOZ NO:L-947

OE Numbers:515087

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Chevrolet:Silverado 3500,GMC: Sierra 3500

AOZ NO:L-947

OE Numbers:515087

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-515087

Fit Vehicles
Chevrolet
Silverado 3500	2001-2006
GMC
Sierra 3500	2001-2006

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: What happens if I over-torque the axle nut?

A: Over-torquing crushes the bearing internals, setting excessive preload. This causes premature wear, increased heat buildup, and significantly reduces the bearing's service life.

Q2: Why does my new hub make a brief whining sound during the first few miles?

A: New bearings often have a break-in period where the internal components seat together. A mild whining that diminishes after 50-100 miles is normal. If it persists or worsens, have it inspected.

Q3: Can road debris damage a hub bearing?

A: Yes. Rocks, gravel, and road debris can strike the hub housing or damage the ABS sensor wire. In severe cases, impact damage can crack the bearing raceway or bend the sensor bracket.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
