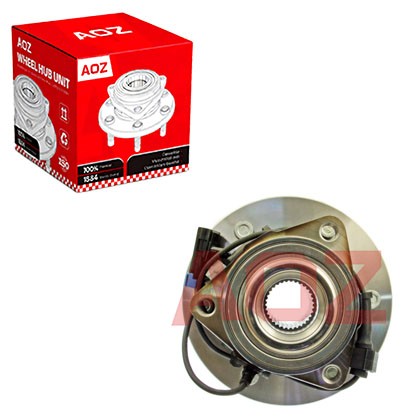

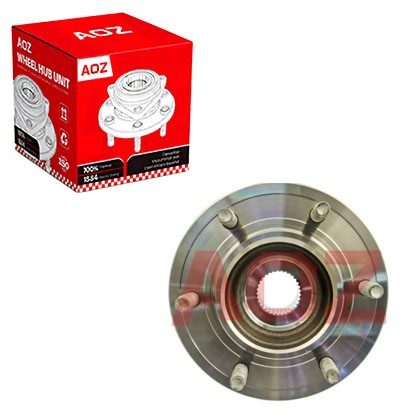

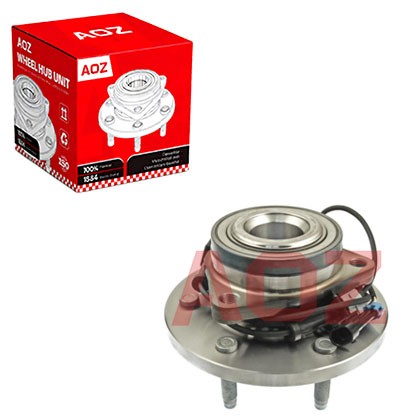

Wheel-hub-bearing-unit-for-GM-USA-515093

Wheel-hub-bearing-unit-for-GM-USA-515093

Fit Vehicles/Application:GM-USA-Hummer H3

AOZ NO:LD099

OE Numbers:515093

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Hummer H3

AOZ NO:LD099

OE Numbers:515093

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-515093

Fit Vehicles

Hummer

2006-2008

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a hub bearing failure cause my vehicle to make a vibration that feels like a flat tire?

A: Yes. A worn bearing creates uneven rotation that mimics the sensation of a flat or out-of-balance tire. Before replacing the hub, rule out tire issues by checking pressure and balance.

Q2: Why does my new hub have a thin film of oil on the exterior?

A: This is a corrosion-preventive coating applied at the factory to protect the hub during storage and shipping. Wipe it off the mounting surfaces before installation, but it does not indicate a leak.

Q3: Can I drive with a hub bearing that has slight play?

A: No. Any measurable play means the bearing is failing. Even small amounts of play will worsen quickly and can lead to sudden failure, wheel seizure, or loss of control.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
