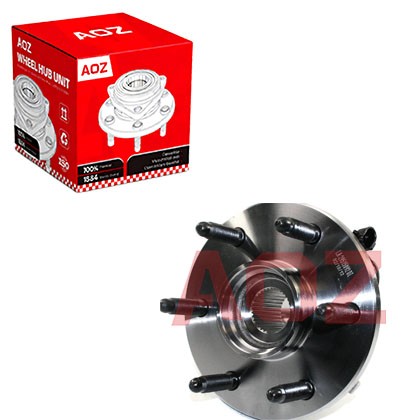

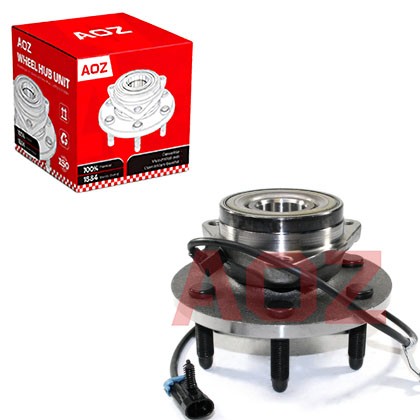

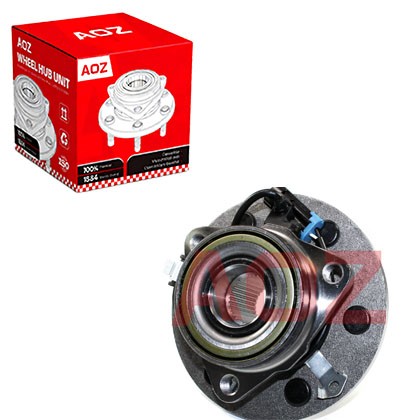

Wheel-hub-bearing-unit-for-GM-USA-515092

Fit Vehicles/Application:GM-USA-Chevrolet: Astro ,GMC: SaFWari

AOZ NO:LD098

OE Numbers:515092

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet: Astro ,GMC: SaFWari

AOZ NO:LD098

OE Numbers:515092

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515092







Fit Vehicles


Chevrolet


Astro

2003-2005

GMC


SaFWari

 2003-2005

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What causes a hub bearing to make noise that disappears when turning in one direction?

A: Turning shifts the vehicle's weight load between the left and right bearings. If noise decreases during a right turn, the left bearing is likely worn because the turn unloads it. The opposite applies for left-side noise during left turns.


Q2: Why does my new hub have a warning label about not using an impact gun on the axle nut?

A: Impact guns apply unpredictable torque that can easily exceed the specification. This damages the bearing preload and voids the warranty. Always use a torque wrench for final tightening.


Q3: Can a hub bearing failure cause my cruise control to stop working?

A: Yes. Cruise control systems use wheel speed data to maintain set speed. If the ABS sensor signal is erratic due to a damaged encoder ring, the cruise control module may disable itself as a safety precaution.

"Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
