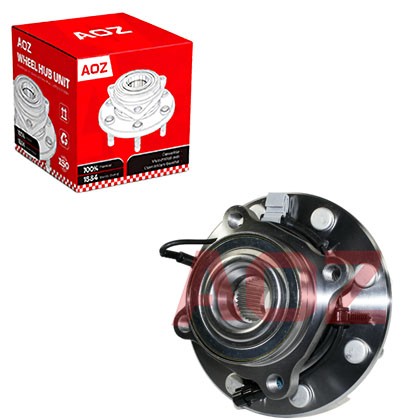

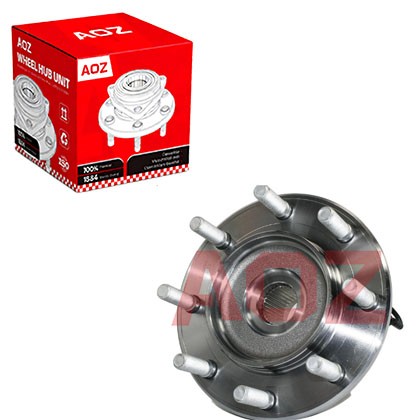

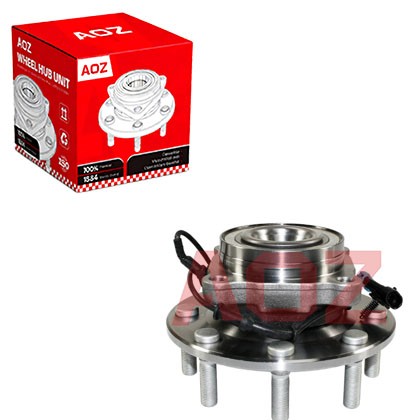

Wheel-hub-bearing-unit-for-GM-USA-515099

Wheel-hub-bearing-unit-for-GM-USA-515099

Fit Vehicles/Application:GM-USA-Chevrolet Silverado 3500，GMC: Sierra 3500

AOZ NO:L-319

OE Numbers:515099

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

Fit Vehicles/Application:GM-USA-Chevrolet Silverado 3500，GMC: Sierra 3500

AOZ NO:L-319

OE Numbers:515099

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER	Cross Reference code
GM-USA-515099

Fit Vehicles
Chevrolet
Silverado 3500	2007-2010
GMC
Sierra 3500	2007-2010

GENERAL PRODUCT DATA
Brand or Logo	AOZ or customer brand
Place of Origin	China, Zhejiang
Product Name	AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit
Packing	White Box / Colour Box / Customized
Certification	ISO/TS16949 - 2016
Sample	Available
Delivery	Sea / Air / Land / Express
Supply Ability	10000 Piece / Per Month
Port	Shanghai, Ningbo, Yiwu, Guangzhou
ABS Sensor	Yes

ACCURACY SPECIFICATIONS
Bearing materials	GCr15 = SAE52100
Flange materials	55# Steel (High quality)
Ball / roller materials	GCr15 = SAE52100
Cage materials	Top Grade PA66 + GF25
Seal materials	Stainless steel + NBR
Wheel stud grade	10.9
Bearing rings hardness control	60-66 HRC
Ball / roller hardness control	61-66 HRC
Inner and outer ring race max roughness control	≤0.20μm
Inner and outer ring race max roundness control	≤3μm
Product inspection	100%
Quality Guarantee	2 years or 60,000 Kilometers

FAQs

Q1: Can a failing hub bearing cause my vehicle to pull to one side while driving straight?

A: Yes. A worn bearing creates uneven rotational resistance, which can make the vehicle drift or pull toward the side with the failing bearing, especially at higher speeds.

Q2: Why does my new hub have a small zip tie holding the ABS wire?

A: The zip tie keeps the ABS wire secured against the hub body during shipping to prevent it from snagging or getting damaged. Cut it carefully during installation and route the wire as the original was routed.

Q3: Can I grease the hub mounting surface before installation?

A: A very thin layer of anti-seize compound is acceptable on the hub-to-knuckle mating surface to prevent corrosion. However, never apply grease to the bearing itself — it is pre-lubricated and sealed for life.

"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
