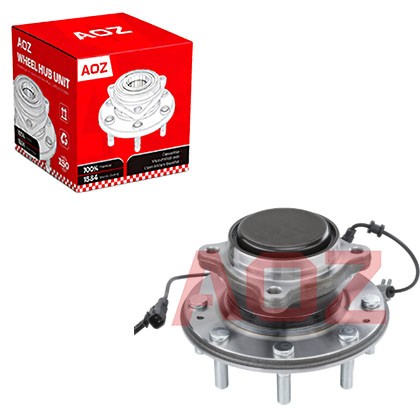

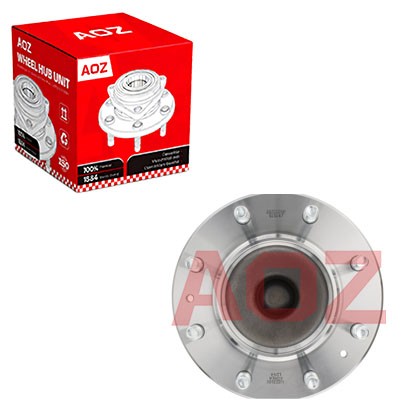

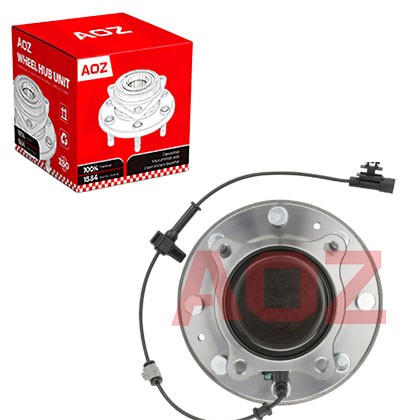

Wheel-hub-bearing-unit-for-GM-USA-515147

Fit Vehicles/Application:GM-USA-Chevrolet Silverado 2500/3500,GMC Sierra 2500/3500

AOZ NO:LD158

OE Numbers:515147

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Chevrolet Silverado 2500/3500,GMC Sierra 2500/3500

AOZ NO:LD158

OE Numbers:515147

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515147






Fit Vehicles


Chevrolet


Silverado 2500/3500

2011-2019

GMC


 Sierra 2500/3500

2011-2019

GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers















FAQs

Q1: Why does my hub bearing make a noise that only appears when the vehicle is turning right and braking?

A: Turning right shifts weight onto the left bearing, while braking adds axial load. The combination of lateral and axial loads on a damaged left bearing amplifies the noise significantly.


Q2: Why does my new hub have a small metal retaining ring visible inside the center bore?

A: This ring is part of the internal bearing assembly and helps maintain the correct positioning of the bearing components. It should not be removed or disturbed during installation.


Q3: Can a bad hub bearing cause my vehicle to make a vibration that is felt in the driver's seat?

 A: Yes. A failing left-side rear bearing can transmit vibration through the suspension and chassis directly into the driver's seat area. If the vibration is strongest in the driver's seat, check the left rear bearing first.

“Quality First, Customers First",  "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
