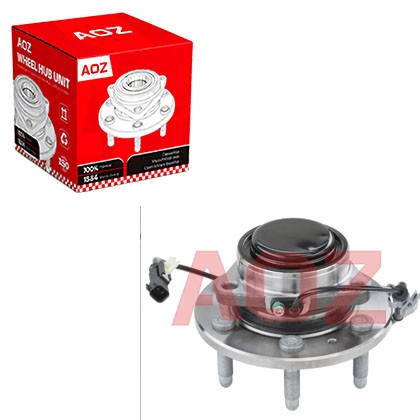

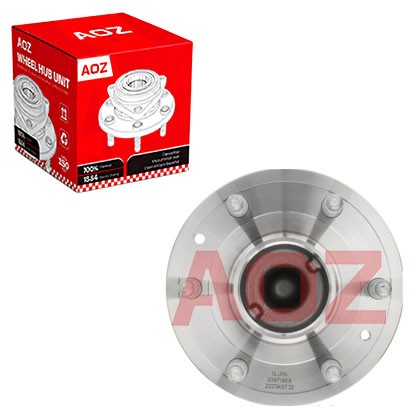

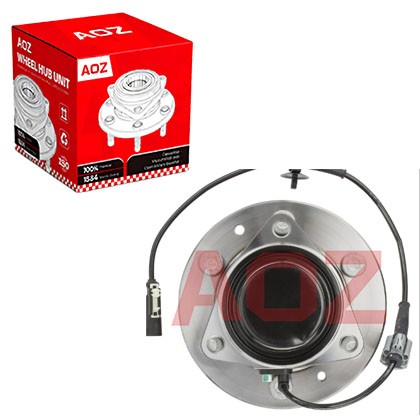

Wheel-hub-bearing-unit-for-GM-USA-515159

Fit Vehicles/Application:GM-USA-Cadillac Escalade ;Chevrolet Silverado, Escalade, Tahoe;GMC Sierra1500, Yukon

AOZ NO:LD159

OE Numbers:515159

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

EMAIL

Fit Vehicles/Application:GM-USA-Cadillac Escalade ;Chevrolet Silverado, Escalade, Tahoe;GMC Sierra1500, Yukon

AOZ NO:LD159

OE Numbers:515159

Cross Reference Numbers:

Certification: IATF 16949:2016

Quality Guarantee: 2 years or 60000 kilometers

OEM-NUMBER

Cross Reference code

GM-USA-515159








Fit Vehicles


Cadillac


Escalade

2015-2020

Chevrolet


 Silverado

2015-2020

Escalade

2015-2020

Tahoe

2015-2020

GMC


Sierra1500

2014-2018

Yukon

2015-2020



GENERAL PRODUCT DATA

Brand or Logo

AOZ or customer brand

Place of Origin

China, Zhejiang



Product Name

AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit

Packing

White Box / Colour Box / Customized

Certification

ISO/TS16949 - 2016

Sample

Available

Delivery

Sea / Air / Land / Express

Supply Ability

10000 Piece / Per Month

Port

Shanghai, Ningbo, Yiwu, Guangzhou

ABS Sensor

Yes



ACCURACY SPECIFICATIONS

Bearing materials

GCr15 = SAE52100

Flange materials

55# Steel (High quality)

Ball / roller materials

GCr15 = SAE52100

Cage materials

Top Grade PA66 + GF25

Seal materials

Stainless steel + NBR

Wheel stud grade

10.9

Bearing rings hardness control

60-66 HRC

Ball / roller hardness control

61-66 HRC

Inner and outer ring race max roughness control



≤0.20μm

Inner and outer ring race max roundness control



≤3μm

Product inspection

100%

Quality Guarantee

2 years or 60,000 Kilometers














FAQs

Q1: What causes a hub bearing to make a grinding noise that only appears when the vehicle is turning left and accelerating?

 A: Turning left shifts weight onto the right bearing, while acceleration adds torque load. The combination of lateral and torque loads on a damaged right bearing amplifies metal-to-metal contact, producing a grinding sound.


Q2: Why does my new hub have a small colored stripe on the ABS connector?

A: The color stripe is a visual identifier used during manufacturing to distinguish connector types or wire configurations. It helps ensure the correct part is matched to the vehicle application.


Q3: Can a hub bearing failure cause my vehicle to make a noise that sounds like a failing transmission?

A: Yes. Both can produce a whining or grinding sound that changes with vehicle speed. To differentiate, check whether the noise changes with turning (hub bearing) or remains constant regardless of steering input (transmission).
