Fit Vehicles /Application :JMC-LANDWIND X5/X7
AOZ NO:L-027
OE Numbers:6655-L002-001,6655L002001
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :JMC-LANDWIND X5/X7
AOZ NO:L-027
OE Numbers:6655-L002-001,6655L002001
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
JMC-6655-L002-001 | |
6655L002001 |
Fit Vehicles | |
JMC | |
LANDWIND X5 | 2013-Present |
LANDWIND X7 | 2015-2019 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

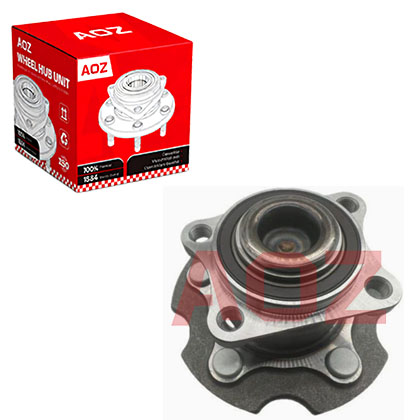

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: Can a bad hub cause my brake pedal to pulsate?
A: Yes. Worn bearings allow the brake rotor to wobble side-to-side. This runout pushes the pads back and forth, creating a pulsating feeling when braking.
Q2: Is it normal for the new hub to have slight side-to-side play?
A: No. A new hub should have zero measurable play. Any lateral movement indicates a defective unit or improper installation.
Q3: What happens if I install the hub backwards?
A: The ABS sensor won't read the magnetic encoder ring, causing the ABS and traction control lights to illuminate immediately.
"Quality First, Customers First", "AOZ" committed to providing reliable products and long-term support to help our partners succeed.
