Fit Vehicles /Application :XPENG- G3
AOZ NO:L-694
OE Numbers:DAC2F74R4569AW
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
Fit Vehicles /Application :XPENG- G3
AOZ NO:L-694
OE Numbers:DAC2F74R4569AW
Cross Reference Numbers:
Certification: IATF 16949:2016
Quality Guarantee: 2 years or 60000 kilometers
OEM-NUMBER | Cross Reference code |
XPENG-DAC2F74R4569AW | |
Fit Vehicles | |
XPENG | |
G3 | 2018-2023 |
GENERAL PRODUCT DATA | |
Brand or Logo | AOZ or customer brand |
Place of Origin | China, Zhejiang |

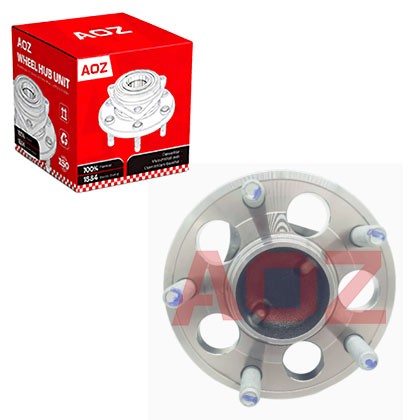

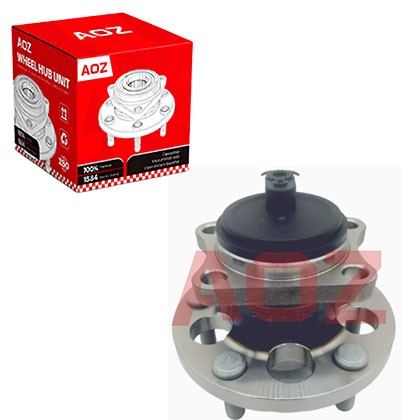

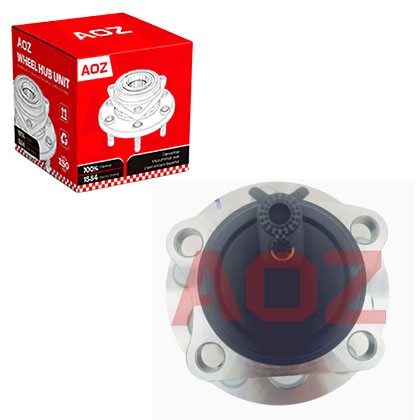

Product Name | AOZ High Quality Front Wheel Hub Auto Part Wheel Hub Unit |
Packing | White Box / Colour Box / Customized |
Certification | ISO/TS16949 - 2016 |
Sample | Available |
Delivery | Sea / Air / Land / Express |
Supply Ability | 10000 Piece / Per Month |
Port | Shanghai, Ningbo, Yiwu, Guangzhou |
ABS Sensor | Yes |
ACCURACY SPECIFICATIONS | |
Bearing materials | GCr15 = SAE52100 |
Flange materials | 55# Steel (High quality) |
Ball / roller materials | GCr15 = SAE52100 |
Cage materials | Top Grade PA66 + GF25 |
Seal materials | Stainless steel + NBR |
Wheel stud grade | 10.9 |
Bearing rings hardness control | 60-66 HRC |
Ball / roller hardness control | 61-66 HRC |
Inner and outer ring race max roughness control |
≤0.20μm |
Inner and outer ring race max roundness control |
≤3μm |
Product inspection | 100% |
Quality Guarantee | 2 years or 60,000 Kilometers |
FAQs
Q1: How do I know if the hub noise is coming from the front or rear?
A: Front hub noise is often felt as a vibration in the steering wheel and changes pitch when turning. Rear hub noise is usually felt through the seat or floorboard.
Q2: Can I drive with a cracked ABS tone ring?
A: No. A cracked or missing tone ring will cause the ABS module to receive erratic wheel speed signals. This will trigger the ABS light and disable your anti-lock braking system.
Q3: Do I need to replace the wheel studs when replacing the hub?
A: Not necessarily. If the existing studs are not stripped, stretched, or badly rusted, they can be reused. However, if the old hub was loose, always inspect the studs carefully.
